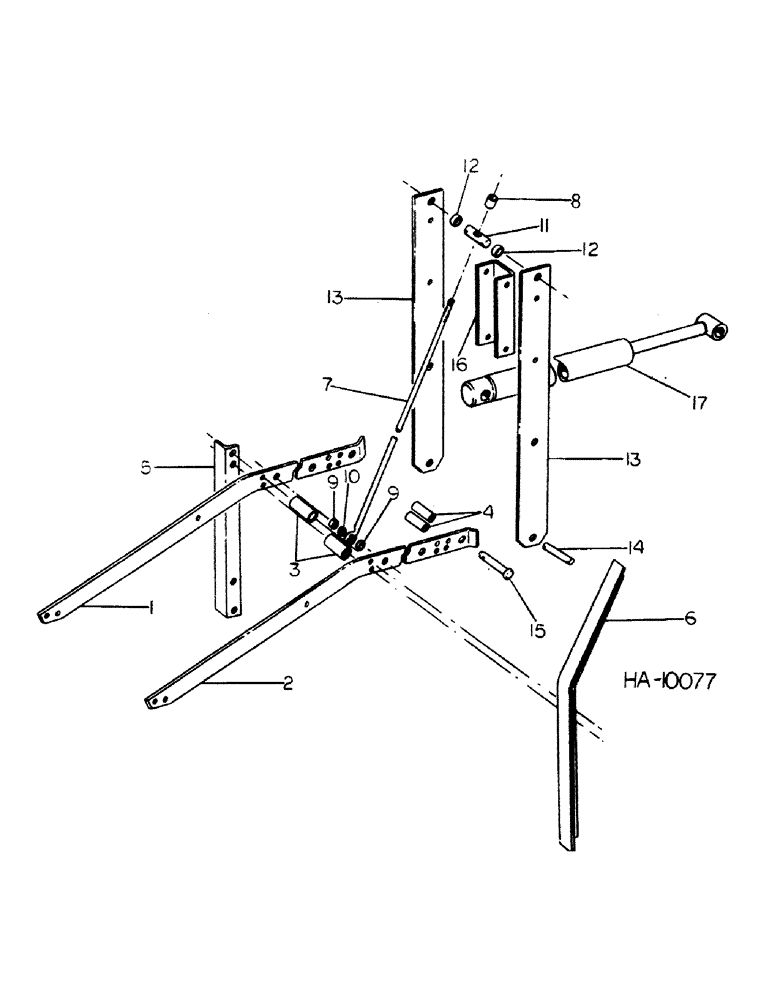

Запчасти Case IH 45 (D-24) - WING LIFT UNIT, 22 FOOT 6 INCH MODEL BUILT AUGUST, 1976 SEASON AND SINCE

1

812596C3

SUPPORT, wing frame lift front LH

1шт.

1

812597C3

SUPPORT

wing frame lift front RH

1шт.

2

812597C3

SUPPORT

wing frame lift rear LH

1шт.

2

812596C3

SUPPORT, wing frame lift rear RH

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

3

H39274

SPACER,1/2" Pipe x 1 1/2"

1/2 x 1.500 std pipe

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

871623R1

SPACER, 1/2 x 2.750 std pipe

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

813353C1

ANGLE

wing lift support front LH

1шт.

5

813353C1

ANGLE

wing lift support rear RH

1шт.

6

813463C1

ANGLE

wing lift support rear LH

1шт.

6

813463C1

ANGLE

wing lift support front RH

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

8123600C3

ROD, wing lift control

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 hex jam

4шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

8

813135C1

SPACER

control rod

1шт.

9

604577R1

SPACER

BUSHING, control rod

2шт.

10

140226H1

WASHER

SPACER, conrol rod

4шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4-10 x 3-1/2 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

21753R1

WASHER

.781 x 1.500 x .054

4шт.

11

813424C2

PIN

control rod

2шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

4шт.

21718R1

WASHER

1.531 x 2.250 x .105

4шт.

12

813447C1

SPACER

1-1/2 x 1/4 std pipe, for service on machines built prior to serial no. 501, order 1-813424C2, pin, 2-617942R1, pins and 2-21718R1, washer

4шт.

13

813425C1

BAR

control arm support

4шт.

14

591633R1

AXLE PIN

PIN, pivot

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

15

813039C1

PIN

lift support transport

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

16

813251C1

CHANNEL

support bar reinforcement

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

17

813243C91

CYLINDER

ASSY, wing lift hyd-alco

1шт.

17

813244C91

CYLINDER

ASSY, wing lift hyd-prince

1шт.

17

813245C91

CYLINDER

ASSY, wing lift hyd-pneu-hyd, for components refer to wing lift hyd cyl

1шт.

813452C1

PIN

lift cyl mounting

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

21214R1

WASHER

1.156 x 2.000 x .105

8шт.
