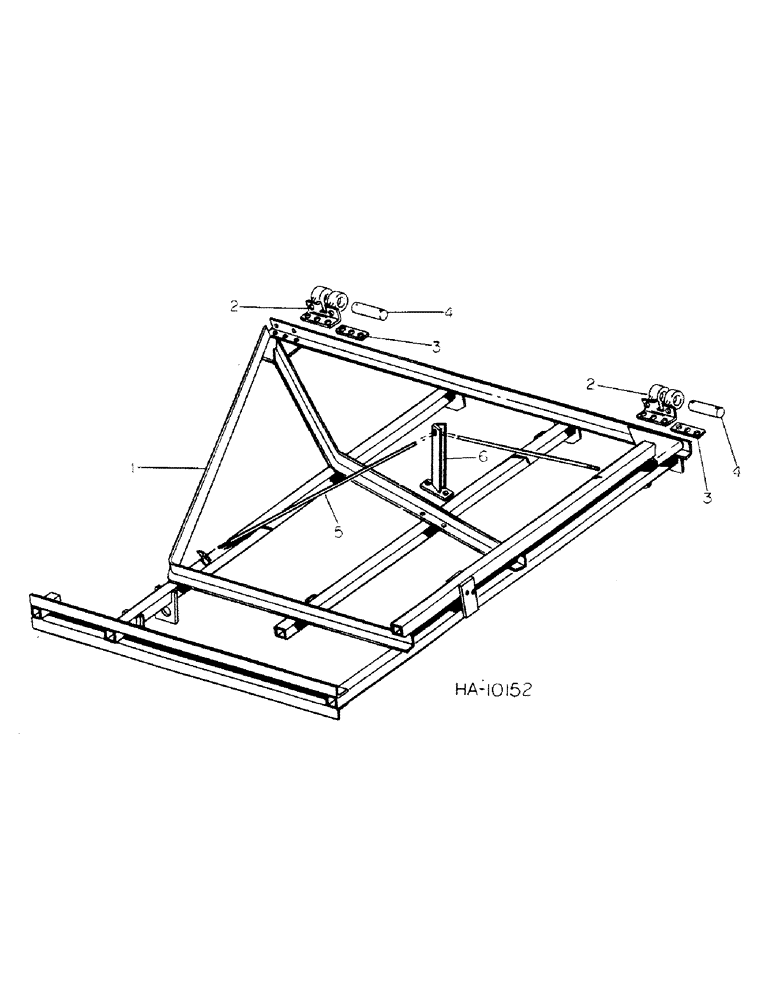

Запчасти Case IH 45 (D-23) - WING FRAME, 31 FOOT 6 INCH MODEL BUILT AUGUST, 1976 SEASON & SINCE

1

813380C2

FRAME

ASSY, 31 foot 6 inch wing LH

1шт.

1

813381C2

FRAME ASSY, 31 foot 6 inch wing RH

1шт.

2

592323R1

BRACKET

wing hinge outer

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

8шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

3

592332R1

BAR, bracket filler

2шт.

4

592324R1

PIN

hinge pivot

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, 1/4 x 1 cotter

8шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

5

813221C1

ROD

wing frame truss

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

8шт.

6

813495C1

SUPPORT

ASSY, truss rod LH

1шт.

6

813213C1

SUPPORT

ASSY, truss rod RH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
