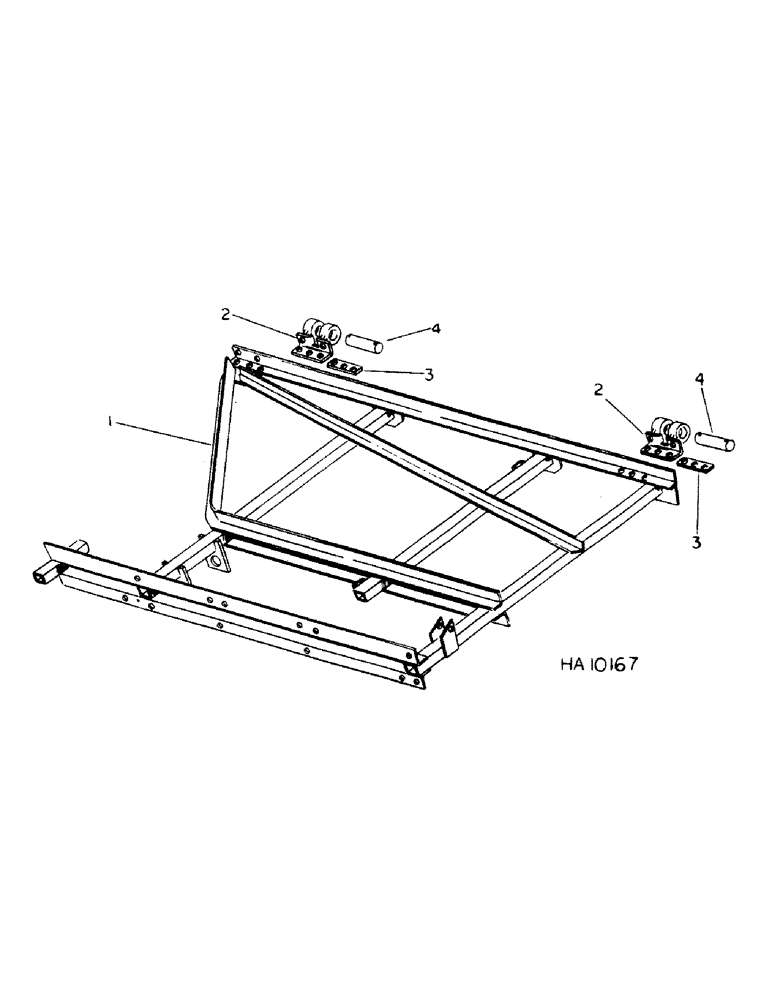

Запчасти Case IH 45 (D-22) - WING FRAME, 22 FOOT 6 INCH MODEL, BUILT AUGUST 1976 SEASON & SINCE

1

813414C1

FRAME ASSY, 22 foot 6 inch wing LH

1шт.

1

813415C1

FRAME

ASSY, 22 foot 6 inch wing RH

1шт.

2

592323R1

BRACKET

wing hinge outer

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

592322R1

BAR

bracket filler

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

8шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

4

592324R1

PIN

hinge pivot

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, 1/4 x 1 cotter

8шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.
