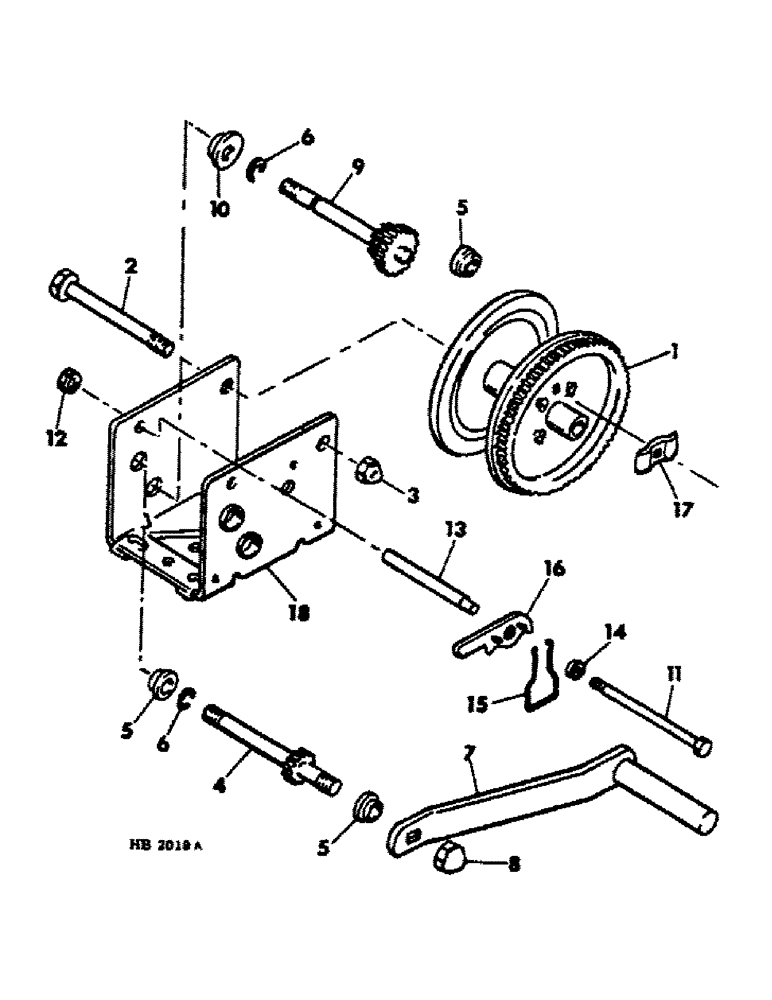

Запчасти Case IH 45 (D-21) - HAND WINCH ASSEMBLY, 22 FOOT 6 INCH MODEL ONLY BUILT MAY 1973 SEASON TO MAY, 1974 SEASON

812271C91

WINCH

ASSY, hand

1шт.

1

812281C1

REEL

winch

1шт.

2

812282C1

SHAFT, reel

1шт.

3

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex-lock

1шт.

4

812283C1

SHAFT

upper drive

1шт.

5

812284C1

BUSHING

drive shaft

3шт.

6

21405R1

RING

shaft retaining

2шт.

7

812285C1

HANDLE, winch

1шт.

8

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 hex-lock type NTE

1шт.

9

812286C1

SHAFT, lower drive

1шт.

10

812287C1

BUSHING

drive shaft

1шт.

11

24649R1

BOLT, 1/4-20 x 4-1/4 hex-hd

1шт.

12

9413992

LOCK NUT,1/4"-20, GC

NUT, 1/4-20 hex lock type

1шт.

13

812288C1

SLEEVE

ratchet

1шт.

14

812289C1

SPACER

ratchet

1шт.

15

812290C1

SPRING, ratchet

1шт.

16

812291C1

RATCHET

winch

1шт.

17

598043R1

CLAMP

cable

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18

BASE, winch, not serviced separately, for service order 1-812271C91, hand winch assy

1шт.
