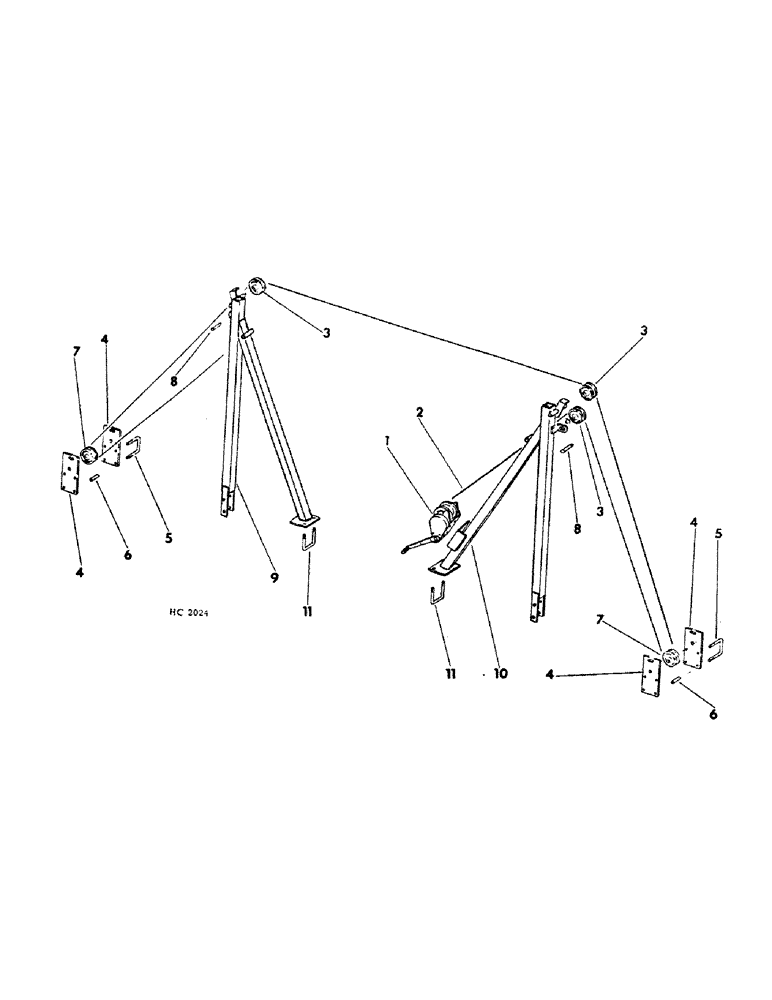

Запчасти Case IH 45 (D-19) - HAND WINCH WING LIFT, NOT FOR USE W/MULCHERS, 22 6" MODEL BUILT 1969 SEASON TO MAY 1974 SEASON
№
Артикул
Название
Примечание
Количество
1
WINCH ASSY, wing lift hand prior to the 1973 season, order 1-812271C91, winch assy
1шт.
1
812271C91
WINCH
ASSY, wing lift hand, for service on machines built 1973 season to 1974 season, for components refer to wing lift hand winch assembly
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
619856R1
WASHER
.406 x 1.000 x .056
1шт.
2
597638R1
CABLE
hand winch
1шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
1шт.
467750R1
WASHER
.781 x 1.500 x .105
1шт.
3
605885R1
PULLEY
wing lift frame
3шт.
432-1232
COTTER PIN,3/16" OD x 2" L
PIN, 1/4 x 1-1/4 cotter
3шт.
178375R1
WASHER
.781 x 1.250 x .054
6шт.
4
811775C1
BAR, outer pulley support
4шт.
5
811776C1
U-BOLT, pulley support bar
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
6
PO14097
PIPE
SPACER, 1/2 x 1-3/4 pipe
8шт.
7
605885R1
PULLEY
wing frame lift outer
2шт.
21401R1
HEADED PIN,3/4" x 2 3/4"
PIN, 3/4 x 2-3/4 std-hd-dld
2шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
2шт.
467750R1
WASHER
.781 x 1.500 x .105
2шт.
8
21401R1
HEADED PIN,3/4" x 2 3/4"
PIN, 3/4 x 2-3/4 std-hd-dld
2шт.
599744R1
AXLE PIN
PIN, quick-attachable cotter
2шт.
467750R1
WASHER
.781 x 1.500 x .105
2шт.
9
811768C1
FRAME ASSY, wing lift LH
1шт.
10
811769C1
FRAME ASSY, wing lift RH
1шт.
180194
BOLT,Hex, 1/2" - 13 x 4", Gr 5
1/2-13 x 4 hex-hd
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
11
591609R1
BOLT
U-BOLT, lift frame mounting
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
Выбрано товаров: 33
