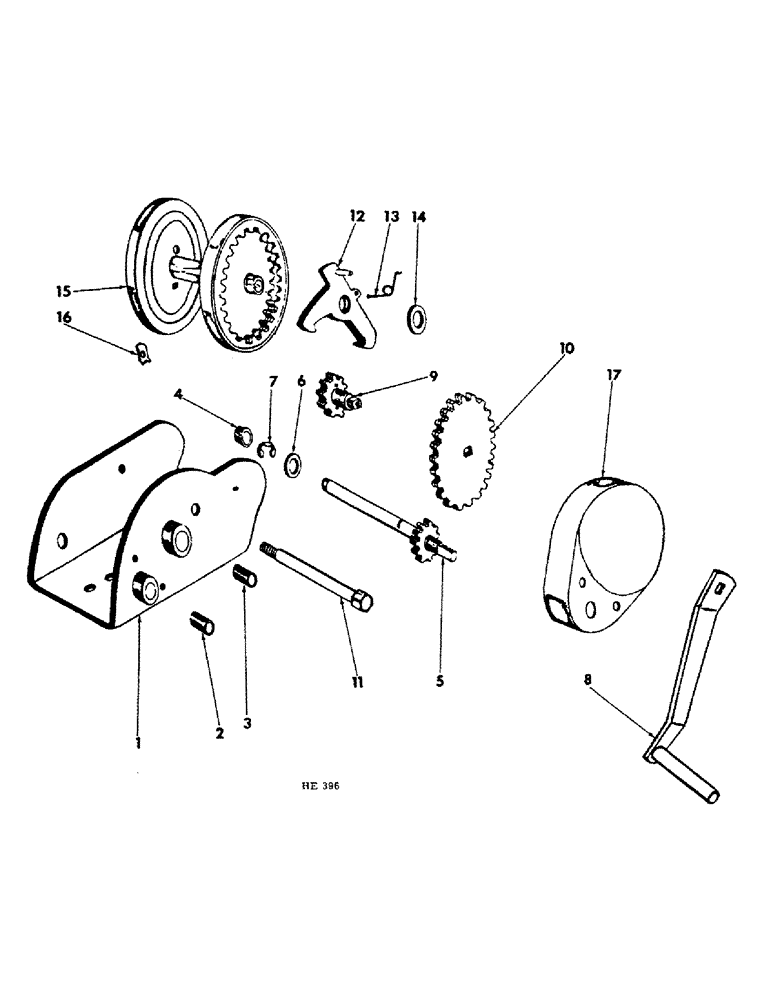

Запчасти Case IH 45 (D-18) - HAND WINCH ASSEMBLY, 22 FOOT 6 INCH MODEL ONLY BUILT PRIOR TO MAY 1973 SEASON

WINCH ASSY, hand, for service of the complete hand winch on machines built prior to May, 1973 season, order 1-812271C91, winch assy

1шт.

1

598053R11

BASE, hand winch, includes 1-598054R1, bushing, 1-598055R1, bushing and 1-598056R1, bushing

1шт.

2

598054R1

BUSHING

9/16 lower

1шт.

3

598055R1

DRIVE BUSHING

BUSHING, 3/4 upper

1шт.

4

598056R1

BUSHING

1/2 back drive shaft

1шт.

5

598049R1

SHAFT, back drive

1шт.

6

472635R1

WASHER

19/32 x 1 x 16 ga

7шт.

7

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , back drive shaft #62, .480" Dia, E-Type

1шт.

8

598050R1

ARM

HANDLE, winch

1шт.

145009

NUT

1/2-NF type LJ locking

1шт.

9

598046R1

SHAFT, reel drive

1шт.

10

598047R1

GEAR

30T drive shaft

1шт.

243120R1

SCREW

BOLT, 5/16-18 x 1/2 nylon locking

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

11

598051R1

BOLT

cable reel shoulder

1шт.

9416107

NUT, 3/8 lock

1шт.

12

598044R1

RATCHET, cable reel

1шт.

13

598045R1

SPRING, reel ratchet

1шт.

14

460908R1

WASHER

.531 x 1.500 x .105

1шт.

15

598042R1

REEL

cable

1шт.

16

598043R1

CLAMP

cable reel

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4-20 x 5/8 type 1 crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

598048R1

COVER

gear

1шт.

598052R1

SCREW, nylon locking gear cover

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
