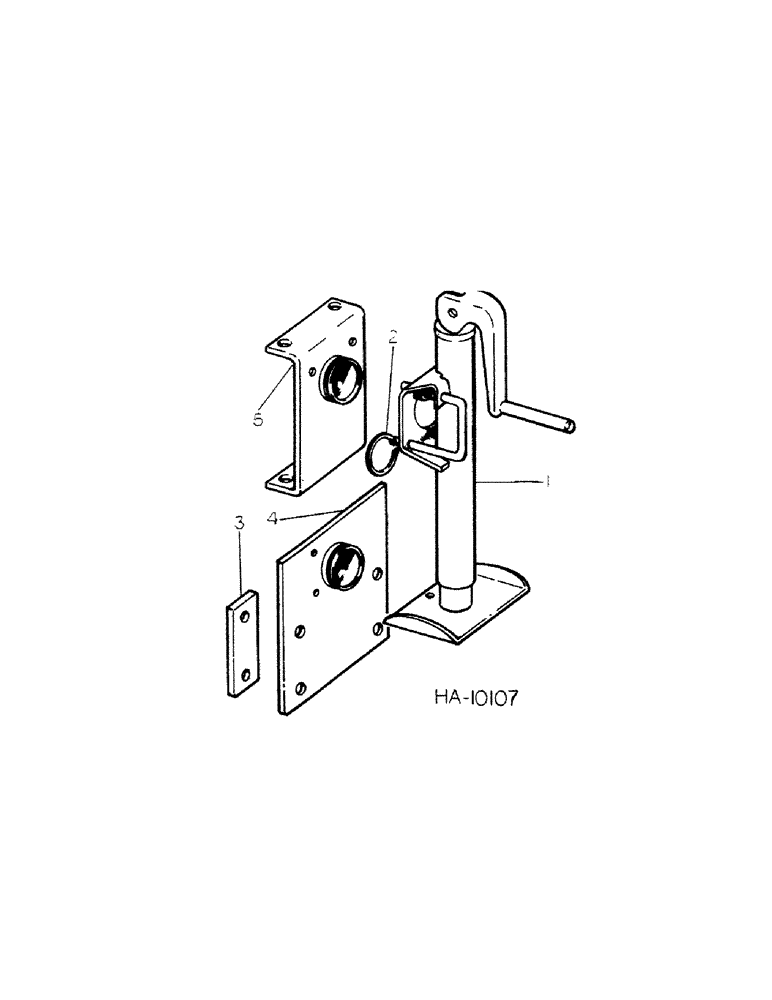

Запчасти Case IH 45 (D-15) - TRACTOR HITCH JACK 226" MODEL BUILT 1972 SEASON TO AUGUST 1762, 31"6" MODEL BUILT 1969-1974 SEASON

1

810009C91

JACK

ASSY, tractor hitch

1шт.

2

24592R1

SNAP RING,#250, Ext

Ring, Snap, , hitch jack #250, Ext

1шт.

3

(Not used this application)

1шт.

4

(Not used this application)

1шт.

5

811272C1

BRACKET ASSY, hitch jack mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21375R1

WASHER

.531 x 1.250 x .164, 2 used 22 foot 6 inch model only

1шт.
