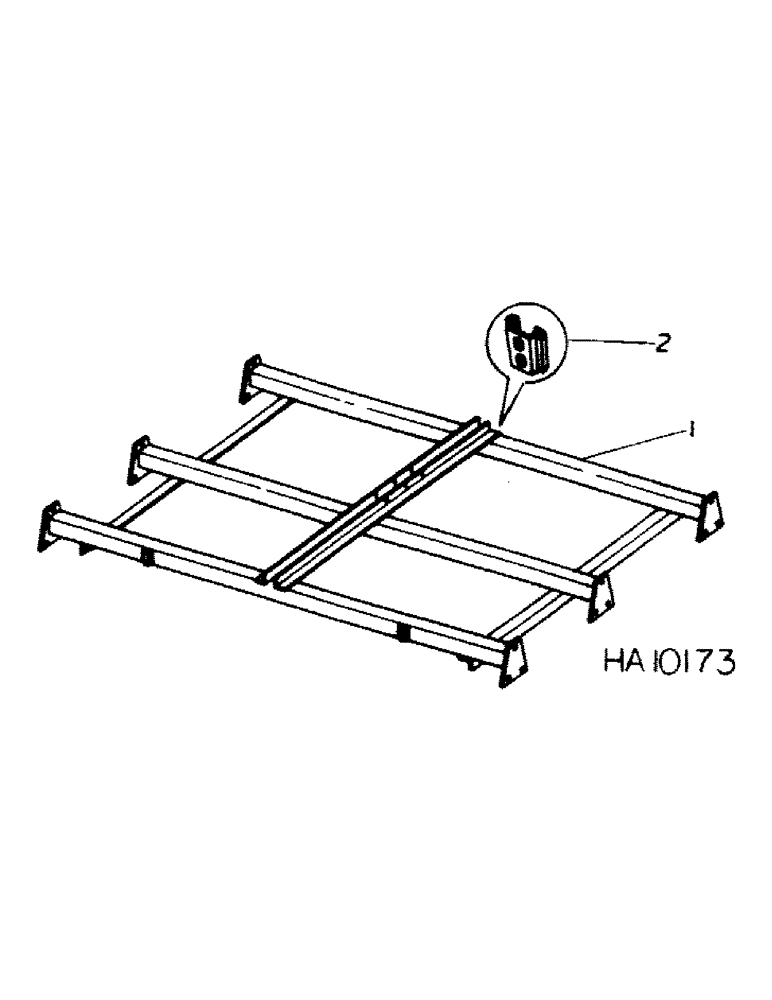

Запчасти Case IH 45 (B-03) - MAIN FRAME, 8 FOOT 6 INCH

1

811518C91

FRAME

ASSY, 8 foot 6 inch main, replaces 591476R92, includes 1-61907C1

1шт.

61907C1

DECAL

PRODUCT GRPAHIC, general caution

1шт.

2

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
