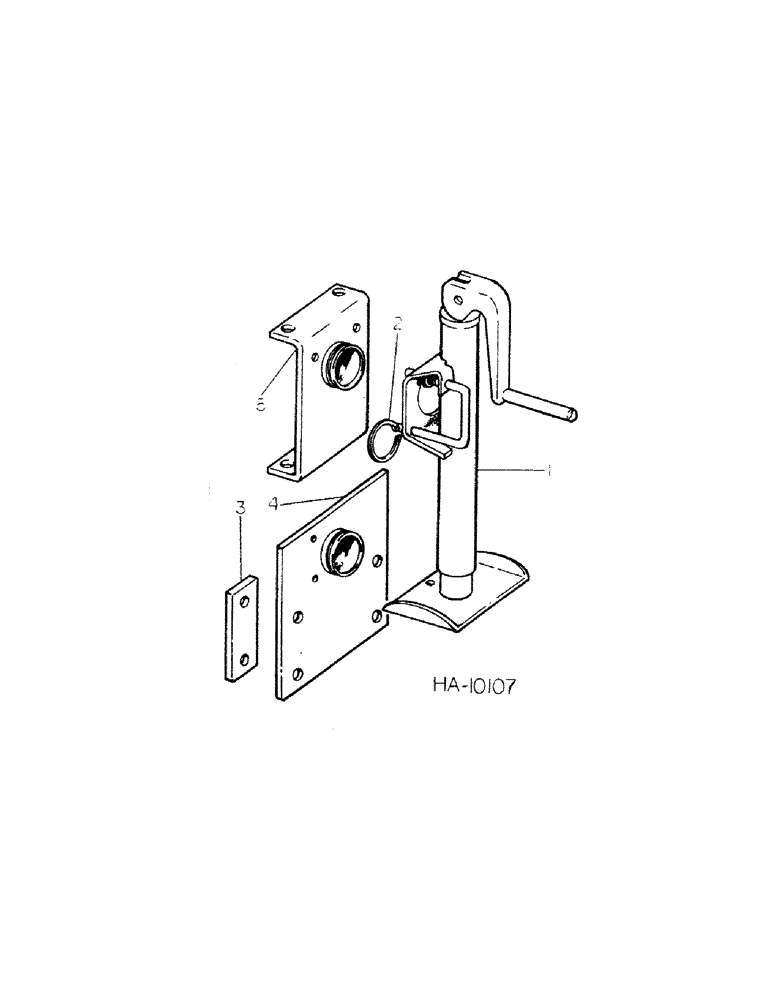

Запчасти Case IH 45 (D-15[A]) - TRACTOR HITCH JACK, 31 FOOT 6 INCH MODEL BUILT 1974 SEASON TO AUGUST, 1976 SEASON

1

810009C91

JACK

ASSY, tractor hitch

1шт.

2

24592R1

SNAP RING,#250, Ext

Ring, Snap, , hitch jack #250, Ext

1шт.

3

813052C1

BAR

support plate mounting

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

812694C1

PLATE

BRACKET ASSY, hitch jack mounting

1шт.

5

(Not used this application)

1шт.
