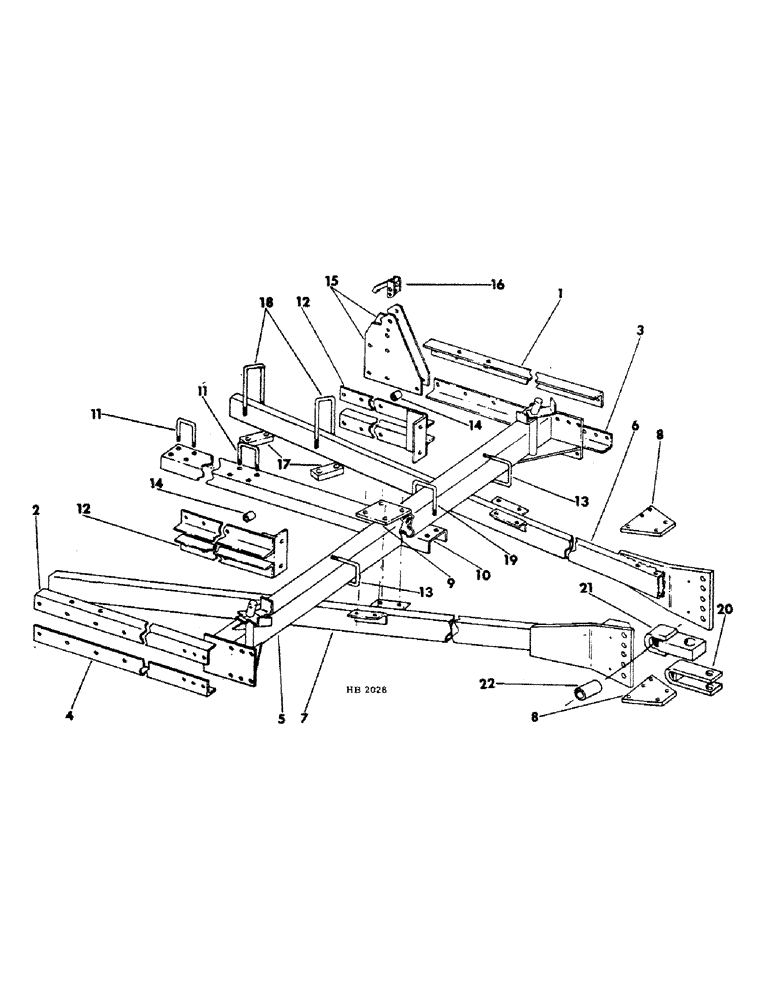

Запчасти Case IH 45 (D-14) - HITCH AND HYDRAULIC MOUNTINGS, 31 FOOT 6 INCH MODEL BUILT SEPTEMBER 1974 TO AUGUST 1976 SEASON

1

812546C1

ANGLE, outer connecting upper LH

1шт.

2

812547C1

ANGLE, outer connecting upper RH

1шт.

3

812546C1

ANGLE, outer connecting lower LH

1шт.

4

812547C1

ANGLE, outer connecting lower RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

20шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

120384

WASHER,1/2"

LOCK, 1/2"

20шт.

5

812504C1

TUBE ASSY, hitch brace

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex-hd

10шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

6

812530C1

BEAM ASSY, hitch LH

1шт.

812531C1

BEAM ASSY, hitch RH

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex-hd, hitch beams together

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

811676C1

PLATE

hitch tie

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 x 7 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

812537C1

BAR, hitch support

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

10

812548C1

CHANNEL, hitch beam

1шт.

11

591609R1

BOLT

U-BOLT, beam channel

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

812532C1

SUPPORT ASSY, rockshaft hyd cyl

2шт.

13

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hyd cyl support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

355682R1

SPACER,3/4" Pipe x 3/4"

BUSHING, support spacer

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

15

811236C1

BRACKET, hyd cyl lift mounting

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

16

811032C1

RETAINER

ASSY, hyd cyl

2шт.

602801R1

PIN

retainer locking

2шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

812541C1

BAR

hitch beam u-bolt support

4шт.

18

812540C1

BOLT,1/2" - 13 x 8.62"

U-BOLT, beam support

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

19

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

brace tube support

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

21

605866R91

TOW BAR

TONGUE ASSY, hitch, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

22

597326R1

SPACER

clevis bolt, for usew/special heavy duty clevis

1шт.
