Запчасти Case IH 45 (D-13) - HITCH AND HYDRAULIC MOUNTINGS, 31 FOOT 6 INCH PRIOR TO SEPTEMBER 1974

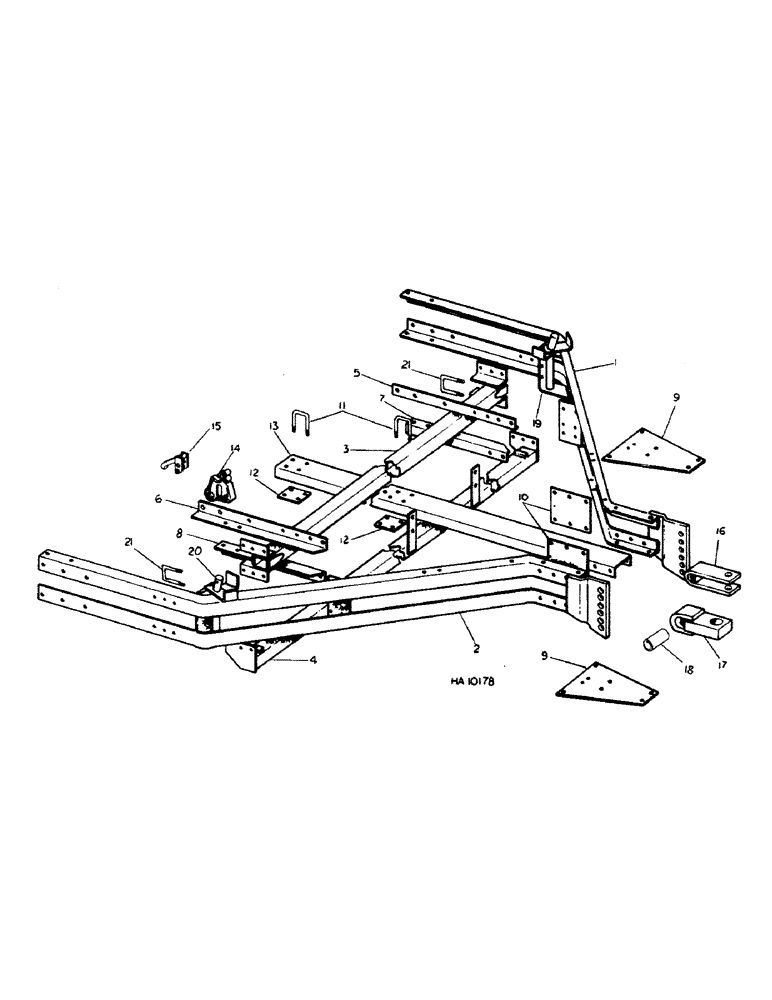

Схема запчастей Case IH 45 - (D-13) - HITCH AND HYDRAULIC MOUNTINGS, 31 FOOT 6 INCH PRIOR TO SEPTEMBER 1974

Артикул

Название

Примечание

Количество

1

811225C1

HITCH ASSY, side LH, includes 1-813282C1, pin assy

1шт.

2

811224C1

HITCH ASSY, side RH, includes 1-813284C1, pin assy

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

3

811233C1

BRACE ASSY, hitch compression

1шт.

4

812186C1

BEAM ASSY, brace reinforcing

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

811235C1

ANGLE, hitch support upper LH

1шт.

6

811234C1

ANGLE, hitch support upper RH

1шт.

7

811234C1

ANGLE, hitch support lower LH

1шт.

8

811235C1

ANGLE, support lower RH

1шт.

355682R1

SPACER,3/4" Pipe x 3/4"

BUSHING, support angle

8шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

16шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

8шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

280954

NUT,3/4"-10, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

9

811232C1

PLATE, hitch tie

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex-hd

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

10

592343R1

BLOCK, hitch tie

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/4 hex-hd

6шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

6шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

591609R1

BOLT

U-BOLT, hitch beam

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12

811260C1

BAR, hitch beam reinforcement

2шт.

13

811230C1

BEAM ASSY, tractor hitch

1шт.

14

811236C1

BRACKET, hyd fyl lift mounting

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

15

811032C1

RETAINER

ASSY, hyd cyl

2шт.

602801R1

PIN

retainer locking

2шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

16

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

17

605866R91

TOW BAR

TONGUE ASSY, hitch, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5- 1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

18

597326R1

SPACER

clevis bolt, for use w/special heavy duty clevis

1шт.

19

813283C1

PIN ASSY, cable pulley LH

1шт.

20

813284C1

PIN ASSY, cable pulley RH

1шт.

21

(Not used this application)

1шт.

Выбрано товаров: 54
