Запчасти Case IH 45 (D-12) - HITCH AND HYDRAULIC MOUNTINGS, 22 FOOT 6 INCH PRIOR TO AUGUST 1976

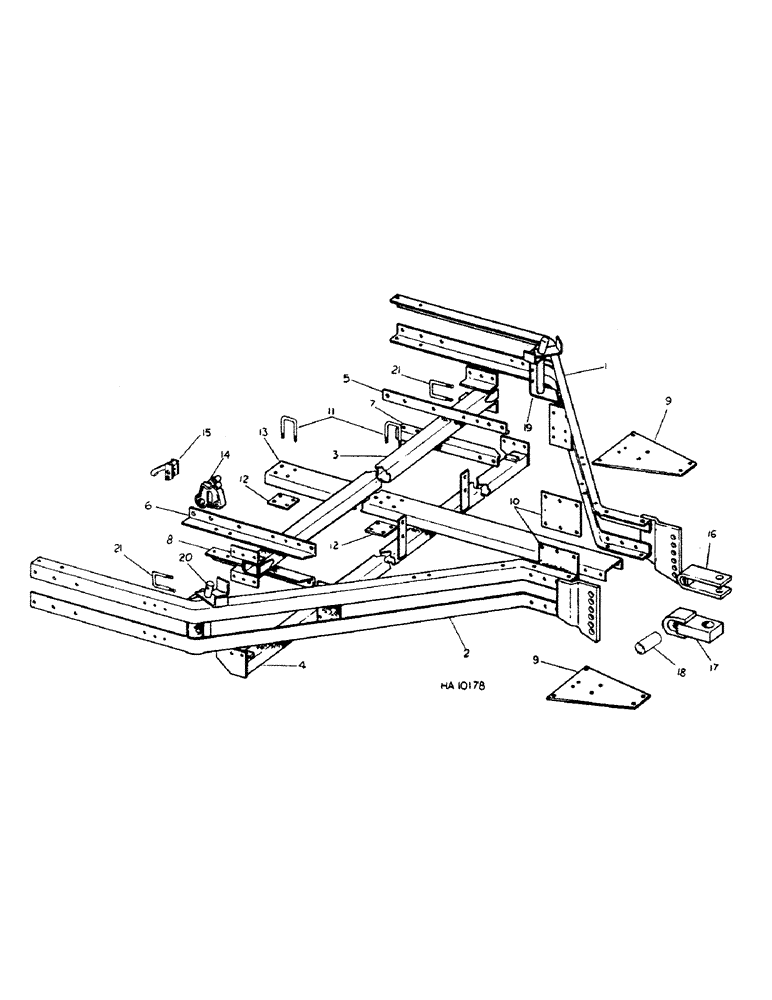

Схема запчастей Case IH 45 - (D-12) - HITCH AND HYDRAULIC MOUNTINGS, 22 FOOT 6 INCH PRIOR TO AUGUST 1976

Артикул

Название

Примечание

Количество

1

592325R91

HITCH ASSY, side LH, includes 10813283C1, pin assy

1шт.

2

592326R91

HITCH ASSY, side RH, includes 1-813284C1, pin assy

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

3

592338R91

BRACE ASSY, hitch compression

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

(Not used this application)

1шт.

5

592334R1

ANGLE, hitch tie upper LH

1шт.

6

592335R1

ANGLE, hitch tie upper RH

1шт.

7

592336R1

ANGLE, hitch tie lower LH

1шт.

8

592337R1

ANGLE, hitch tie lower RH

1шт.

612433R1

BUSHING, tie angles

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOTL, 1/2-13 x 1-1/4 hex-hd

8шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 x 3-3/4 hex-hd

8шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

592345R1

PLATE, hitch tie

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex-hd

11шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

10

592343R1

BLOCK, hitch tie

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 101/4 hex-hd

6шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

6шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

591609R1

BOLT

U-BOLT, hitch beam

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12

592344R1

BAR, hitch beam reinforcement

2шт.

13

592341R11

BEAM ASSY, tractor hitch

1шт.

14

602800R2

BRACKET

hyd cyl lift mounting

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

15

811032C1

RETAINER

ASSY, hyd cyl

2шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

602801R1

PIN

bracket retainer locking

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

16

597324R1

CLEVIS

ASSY, hitch, regular

1шт.

17

605866R91

TOW BAR

TONGUE ASSY, hitch, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 XK-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

18

597326R1

SPACER

clevis bolt, for use w/special heavy duty clevis

1шт.

19

813283C1

PIN ASSY, cable pulley LH

1шт.

20

813284C1

PIN ASSY, cable pulley RH

1шт.

21

591609R1

BOLT

U-BOLT, hitch brace

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 57
