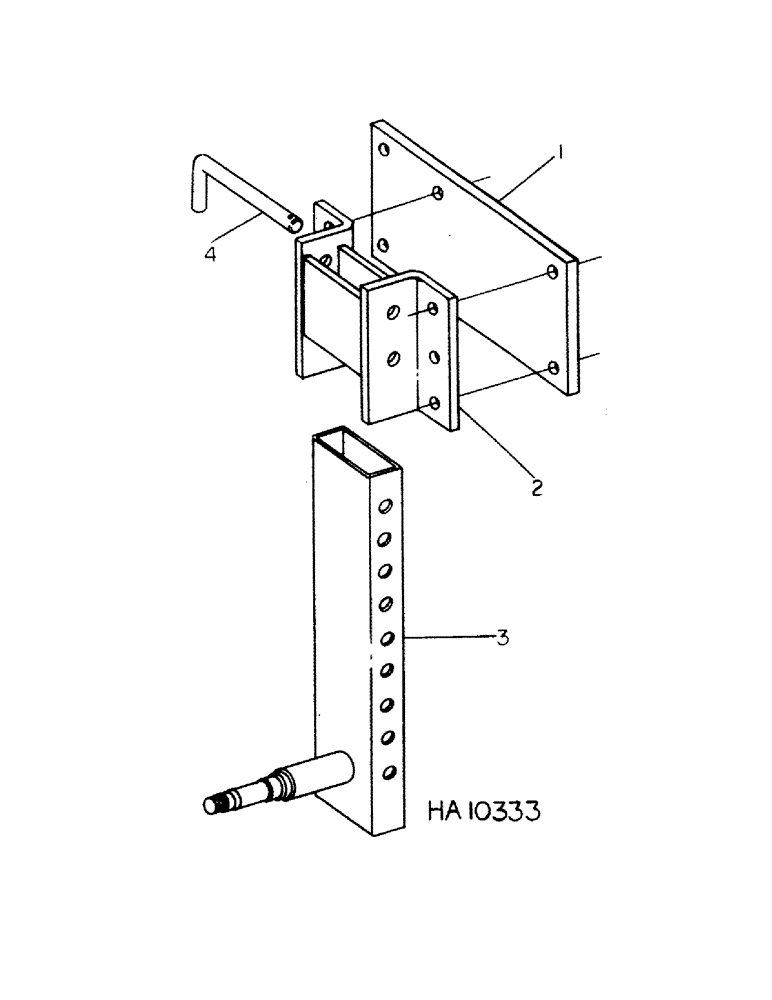

Запчасти Case IH 45 (D-10) - GAUGE WHEEL, 31-1/2 FT.

1

813532C1

PLATE

support mounting

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

811945C1

SUPPORT

ASSY, gauge wheel

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

811542C91

AXLE

ASSY, gauge wheel, includes 1-467750R1, washer, 1-427640, nut, 1-103396, pin

2шт.

4

811951C1

PIN

axle locking

2шт.

591107R1

COTTER PIN

Q.A. cotter

2шт.
