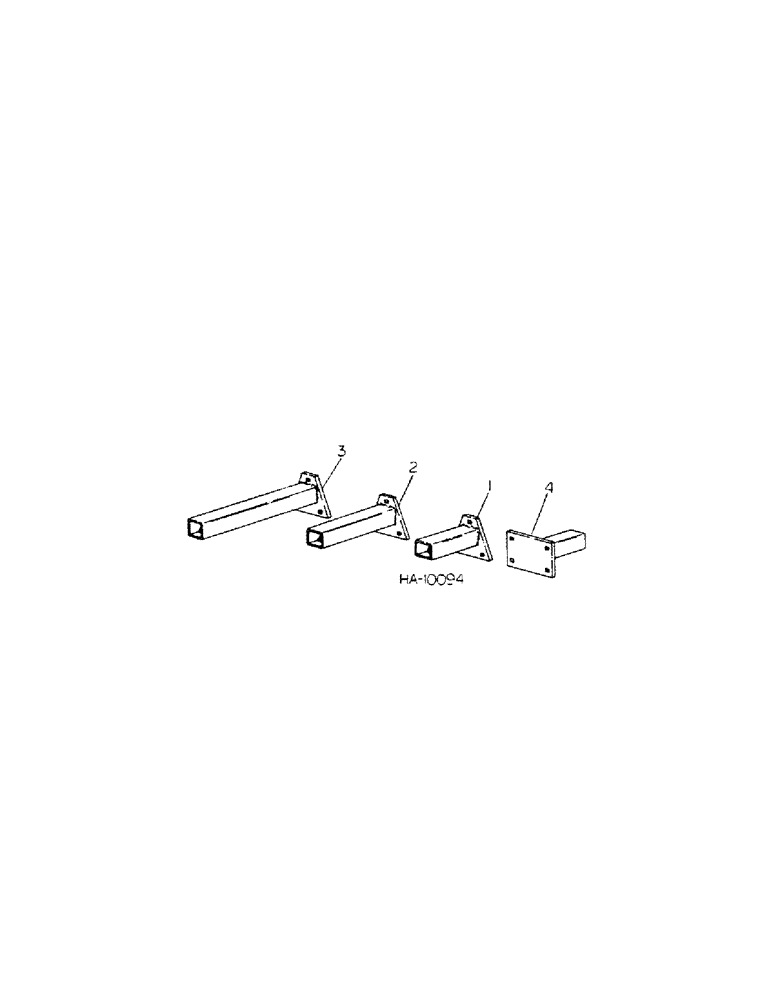

Запчасти Case IH 45 (D-10[A]) - EXTENSIONS

1

591499R11

EXTENSION

ASSY, stub frame short

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

2

591597R11

EXTENSION

ASSY, stub frame medium

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.

3

591598R11

TUBE

EXTENSION ASSY, stub frame long

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

811249C1

EXTENSION ASSY, stub frame inside, for use on 31 foot 6 inch wing model w/6 inch spacing for use on machines built prior to August, 1976

1шт.

466972C1

BOLT, 1/2-13 x 1-3/4 carriage

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20601R1

WASHER

.531 x 1.250 x .105

3шт.
