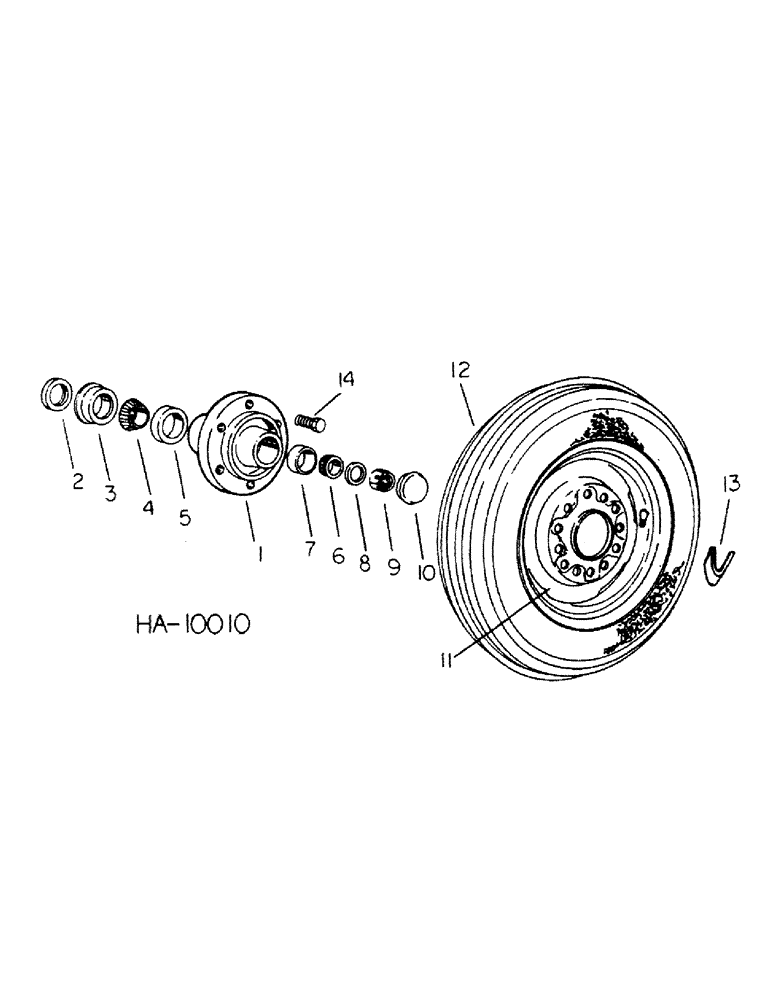

Запчасти Case IH 45 (D-09) - WHEEL AND HUB, WING FRAME

1

591535R1

HUB

wing wheel, prior to August, 1976 season

2шт.

REF#1 AFTER,HUB HAS 6 HOLES 1/2"-20 UNF

1шт.

1

810087C1

HUB

wing wheel, August, 1976 season and since

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, hub inner bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-hd-sltd

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB

2шт.

11

455169R92

WHEEL

15 x 4-1/2 KB

2шт.

11

811389C1

RIM

WHEEL, 14 x 6 KB, August, 1976 season and since

2шт.

12

TIRE & TUBE, 7.50-14/4 ply cone w/implement tread

2шт.

12

TIRE, 7.50-14/4 ply code w/tubeless, prior to August, 1976 season

2шт.

12

TIRE, 8.5L-14/4 ply tubeless, August, 1976 season and since

2шт.

387841R91

VALVE

tubeless tire TR 413

2шт.

13

811382C1

PACKAGE

tire valve guard service, includes 12-guards and 1-pamphlet

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.
