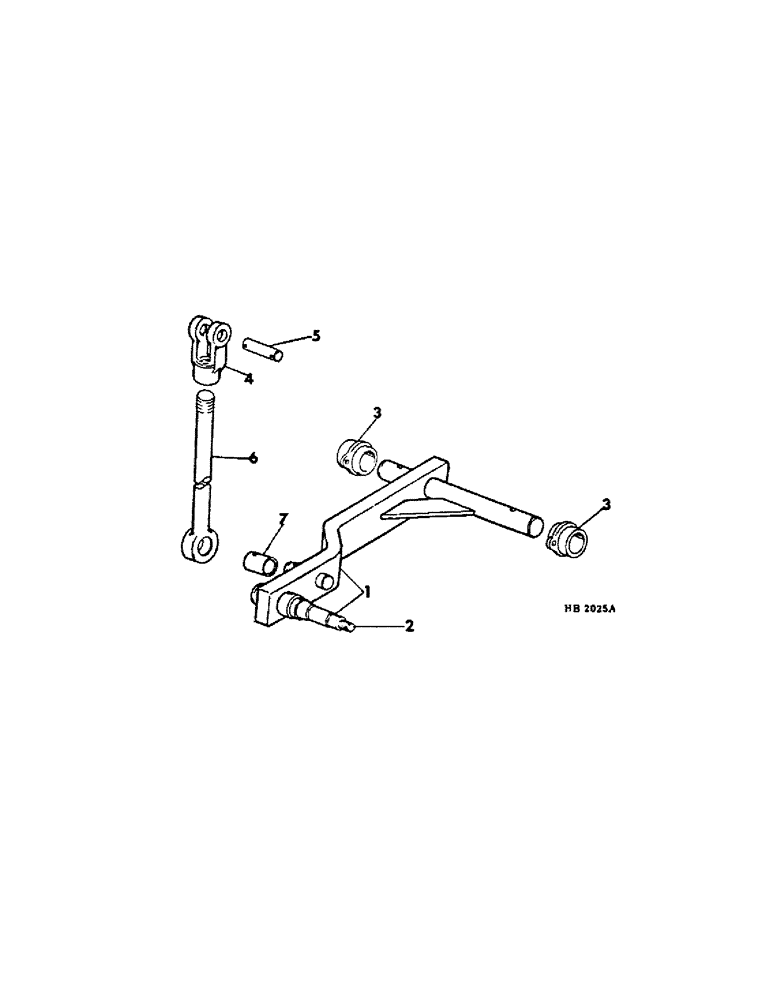

Запчасти Case IH 45 (D-08) - WING FRAME AXLE, BUILT PRIOR TO AUGUST, 1976 SEASON

1

592359R91

AXLE ASSY, wing frame, includes 1-811159C91, spindle

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

2

811159C91

SPINDLE

wing frame axle, welded

2шт.

Not Serviced Separately

1шт.

3

BEARING, gauge wheel axle, for service order 813201C1, bearing

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

591536R1

YOKE

axle lift link eyebolt

2шт.

5

591537R2

PIN

lift link eyebolt yoke

2шт.

19479R1

PIN,1/4" x 2", Coiled

2шт.

96

591538R1

BOLT, axle lift link eye

2шт.

7

608323R1

BUSHING

lift link eyebolt

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

PIN, 1/4 x 1-1/2 cotter

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.
