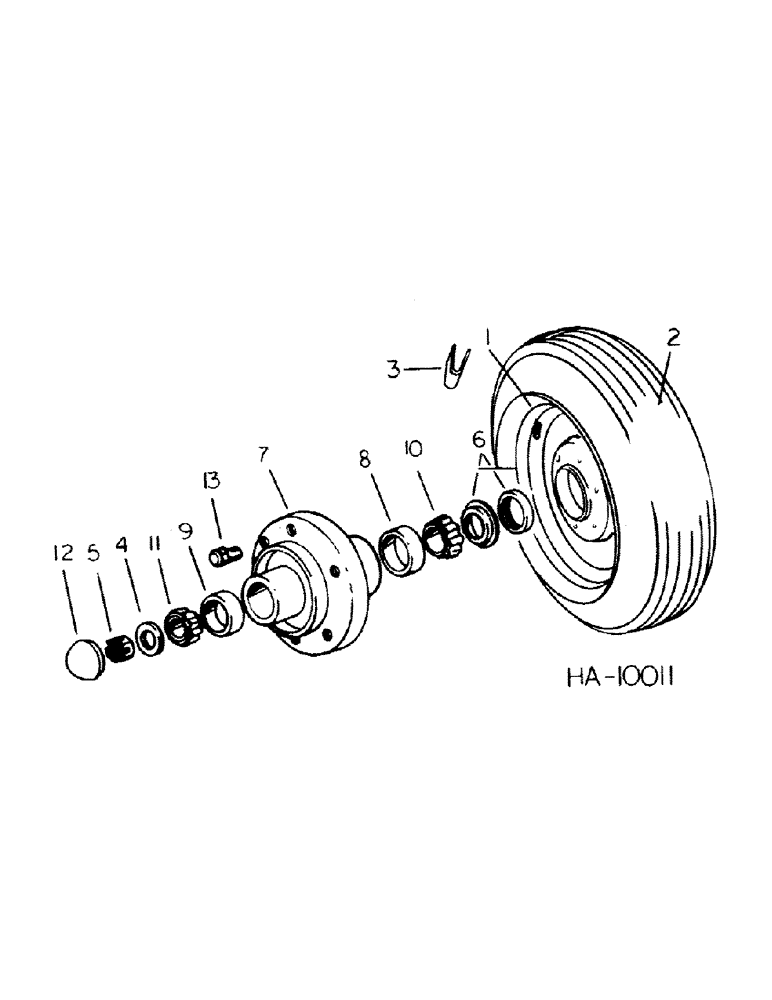

Запчасти Case IH 45 (D-06) - WHEEL AND HUB-MAIN FRAME

1

622192R91

WHEEL

15 x 5 KB, opt w/463034R1

2шт.

1

463034R1

RIM

WHEEL, 14 x 5 KB, opt w/622192R91, 22 foot 6 in, prior to August 1976

2шт.

1

481344R91

WHEEL

14 x 8 KB, 31 foot 6 in. prior to August 1976

2шт.

1

811389C1

RIM

WHEEL, 14 x 6 KB, August 1976 and since

4шт.

2

TIRE AND TUBE, 9.5L-14 6 ply wagon w/1 tube type w/13 CW valve, 31 foot 6 in. prior to August 1976

2шт.

2

TIRE AND TUBE, 9.5L-14 4 ply code w1-22 foot 6 in. prior to August 1976

2шт.

2

TIRE, 7.50-14 4 ply code w/1 tubeless

2шт.

387841R91

VALVE

tubeless tire tr-413

2шт.

TIRE, 8.50 L-14 4 ply 1-1 tubeless

4шт.

387841R91

VALVE

tubeless tire tr-413

4шт.

3

811382C1

PACKAGE

tire valve guard service, includes 12 guards and 1, pamphlet

1шт.

4

619373R1

WASHER

.906 x 2.00 x .164

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

6

606556R91

OIL SEAL

SEAL ASSY, wheel hub oil

4шт.

7

606468R11

HUB

ASSY, main frame wheel, includes 1-663558R1, cup and 1-651817R1, cup

4шт.

8

663558R1

BEARING CUP

CUP, wheel hub bearing

4шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

4шт.

12

663906R1

CAP

wheel hub

4шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

24шт.
