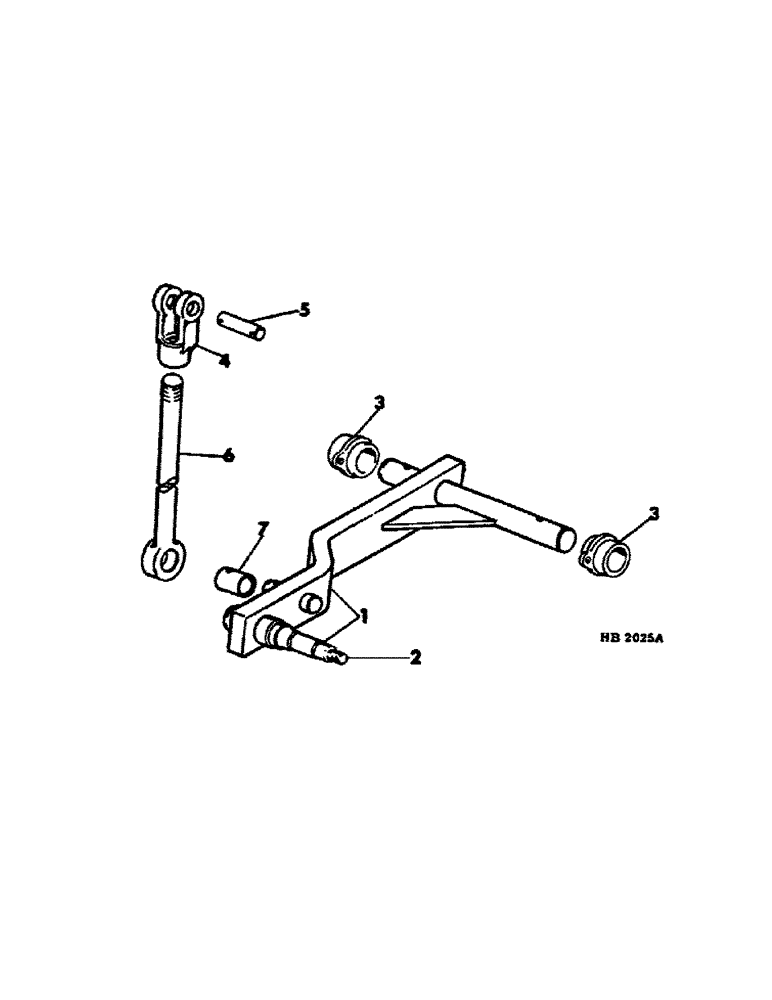

Запчасти Case IH 45 (D-04[A]) - MAIN FRAME AXLE BUILT PRIOR TO AUGUST, 1976 SEASON

1

592358R91

AXLE ASSY, main frame, 22 foot 6 inch model, includes 1-592363R1, spindle

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

1

811239C1

AXLE ASSY, main frame, 31 foot 6 inch model, consists of (1) nut 70120D, (1) pin 103386, (1) spindle 811241C11, (1) washer 619373R1

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

2

592363R1

SPINDLE

main frame axle, welded, 22 foot 6 inch model

2шт.

2

811241C11

SPINDLE

main frame axle, welded, 31 foot 6 inch model, includes 1-70120D, nut, 1-103386, pin and 1-6193736R1, washer

2шт.

3

BEARING, gauge wheel axle, for service order 813201C1, bearing

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

591536R1

YOKE

lift link eyebolt

2шт.

5

591537R2

PIN

lift link eyebolt

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

6

591538R1

BOLT, lift link eye

2шт.

7

608323R1

BUSHING

eyebolt

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.
