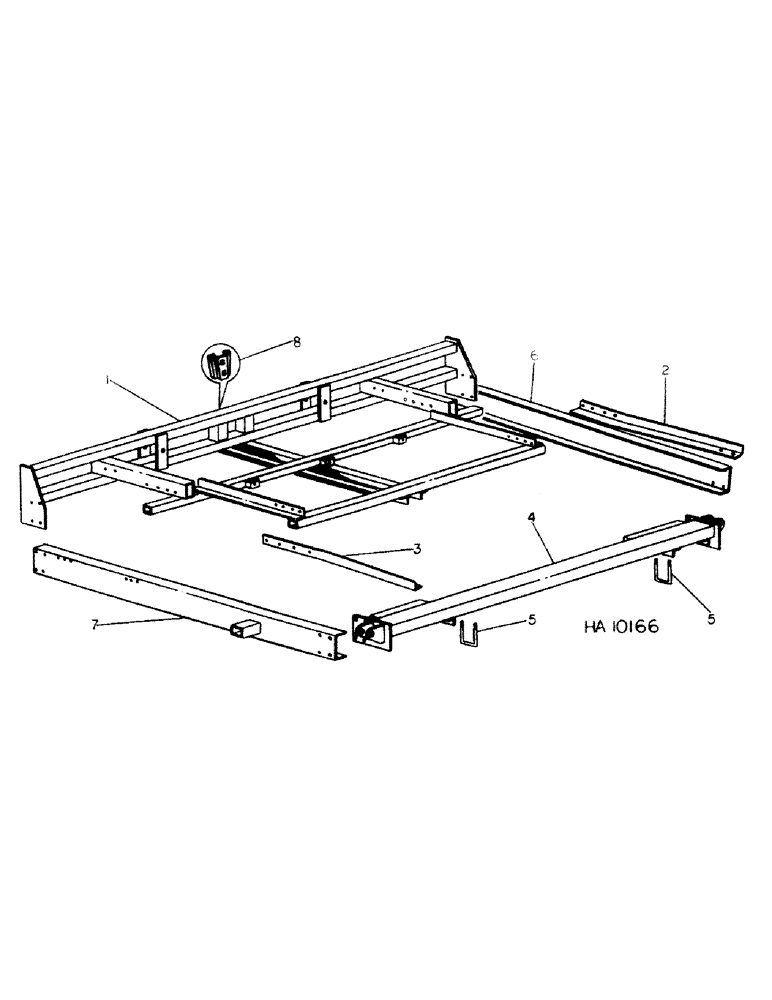

Запчасти Case IH 45 (D-03) - MAIN FRAME, BUILT AUGUST 1976 SEASON AND SINCE

1

811554C91

FRAME

ASSY, 22 foot 6 inch main replaces 813413C1

1шт.

1

811563C92

FRAME ASSY, 31 foot 6 inch main replaces 813350C1

1шт.

2

813249C1

ANGLE, frame intermediate connecting LH, 22 foot 6 inch

1шт.

2

813371C1

ANGLE

frame intermediate connecting LH, 31 foot 6 inch

1шт.

3

813250C1

ANGLE, frame intermediate connecting RH, 22 foot 6 inch

1шт.

3

813372C1

ANGLE, frame intermediate connecting RH, 31 foot 6 inch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

813411C1

TUBE

ASSY, frame front brace, 22 foot 6 inch model

1шт.

4

813370C1

TUBE ASSY, frame front brace, 31 foot 6 inch model 169.5, 4.9" Length

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

brace tube support, 22 foot 6 inch model

2шт.

5

597661R1

BOLT,U, 5/8" - 11 x 7.19"

U-BOLT, brace tube support, 31 foot 6 inch model

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

6

813206C1

CHANNEL

ASSY, outer connecting LH

1шт.

7

813207C1

CHANNEL

ASSY, outer connecting RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
