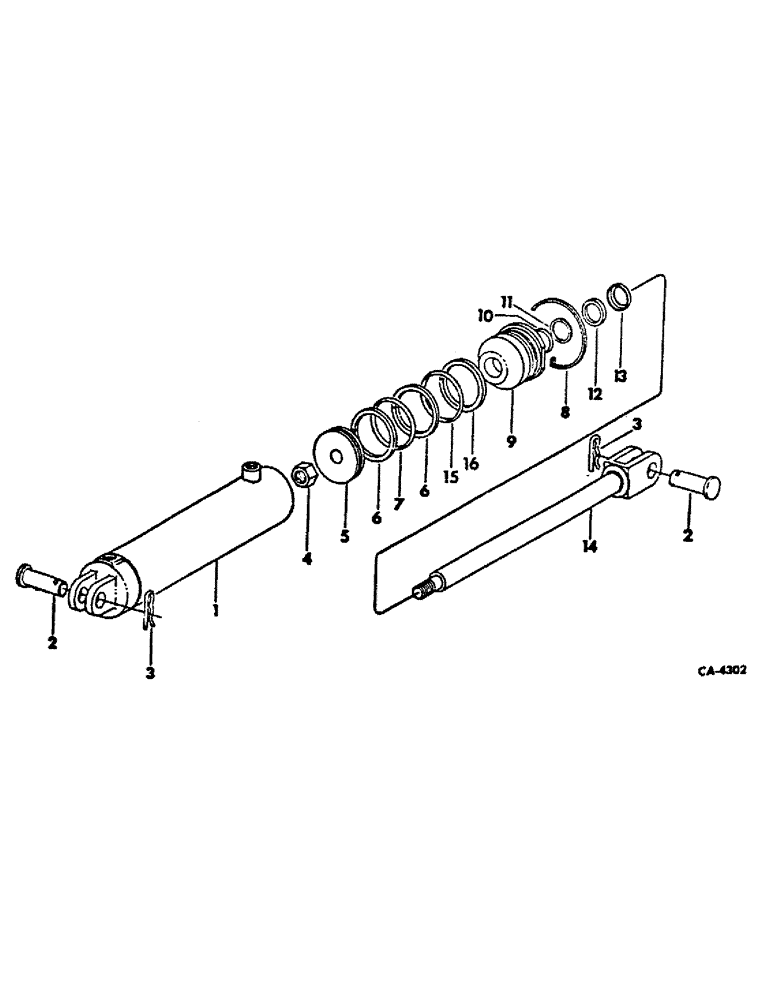

Запчасти Case IH 45 (C-24) - REMOTE CONTROL HYD CYL RECOMMENDED HYD FOR TRACS W/HYD SYSTEMS RATED UP TO 2500 PSI

61105C91

CYLINDER

ASSY, 3-1/2 x 8 inch DA hyd w/o hyd stroke control

1шт.

1

61072C1

BODY

hyd cylinder

1шт.

2

64560C1

HEADED PIN

PIN, cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick-attachable cot

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 hex lock

1шт.

5

547724R1

PISTON

cylinder

1шт.

6

375936R1

BACK-UP RING

WASHER, back-up

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, piston seal

1шт.

8

405002R1

RING

RETAINER, front head

1шт.

9

60806C1

HEAD

front

1шт.

10

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/4 x 1-1/2 x 1/8, piston rod seal

1шт.

11

546279R1

WASHER

quad ring back-up

1шт.

12

386421R1

WASHER

WIPER, piston rod

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

RETAINER, piston rod

1шт.

14

547719R1

ROD

ASSY, piston

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8, front head

1шт.

16

404015R1

BACK-UP RING

WASHER, back-up

1шт.

547725R91

SEAL KIT

PACKAGE, hyd cyl seal service, consists of ref nos 4, 6-8, 10-13, 15, 16

1шт.
