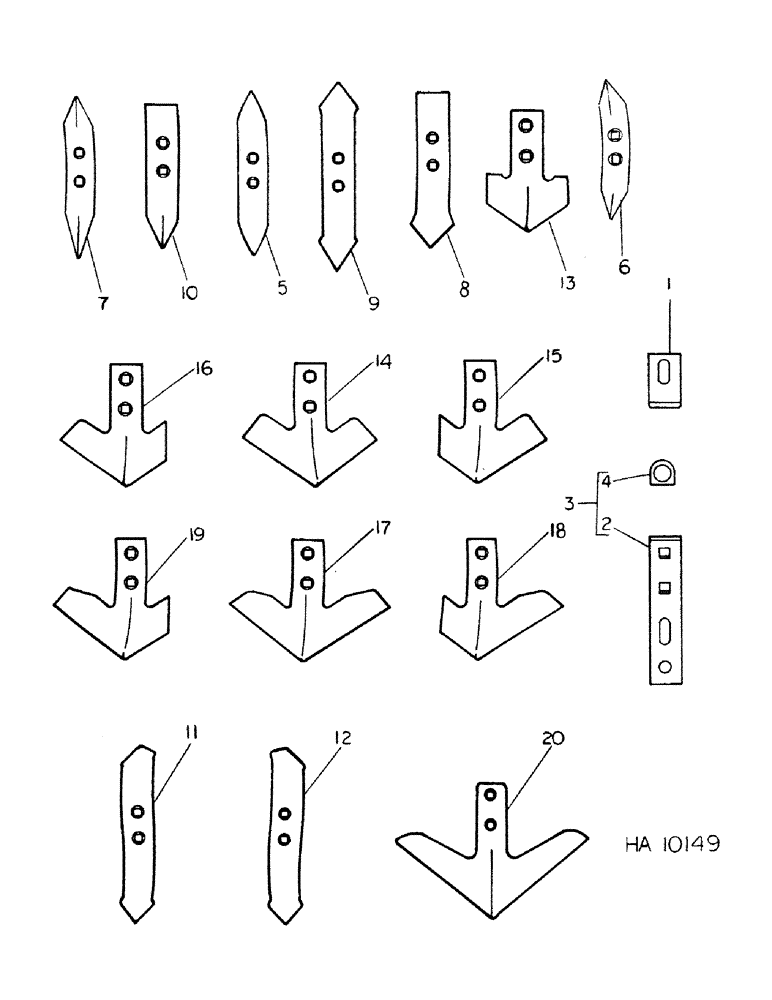

Запчасти Case IH 45 (A-4) - GROUND WORKING TOOLS AND SHANKS, GROUND WORKING TOOLS

1

592811R1

WEDGE

sweep spacer, 1 per shank, recommended to overflow excessive suck or penetration when working w/sweeps in wet heavy soil

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16-14 x 1-5/8 type 5 no 3 plow

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

1шт.

21331R1

WASHER

.469 x 1.250 x .054

1шт.

2

EXTENSION , sweep, not serviced separately, for service order 1594544R11, extension assy

1шт.

3

594544R11

CABLE EXTENSION

EXTENSION, assy sweep, for use on machines when soil becomes compacted by large tractor tires, consists of (2) bolt 21148R1, (2) nut 271501, (1) washer 21331R1, (2) washer 120383, (1) wedge 605658R1

1шт.

4

605658R1

WASHER

WEDGE, sweep extension, for use on machines when soil becomes compacted by large tractor tires

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16-14 x 1-3/8 no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21331R1

WASHER

.469 x 1.250 x .054, for use on upper bolt

1шт.

5

811889C1

POINT

2 inch reversible pencil, regular for all machines

1шт.

6

811191C1

POINT

1-3/8 inch reversible chisel, special for all machines, prior to 1975 season

1шт.

7

596623R1

POINT

1-3/4 inch reversible chisel, special for all machines

1шт.

8

594229R1

TIP

POINT, 2 inch quack grass, special for all machines, prior to 1976 season

1шт.

9

811799C1

POINT

2 inch reversible chisel, special for all machines

1шт.

10

594227R1

TOOTH

POINT, 2 inch pencil, special for all machines

1шт.

11

597672R1

TIP

POINT, 2 inch twisted LH, special for all machines, prior to 1976 season

1шт.

12

597673R1

POINT

2 inch twisted RH, special for all machines, prior to 1976 season

1шт.

13

591588R1

TIP

SHOVEL, 4-1/2 inch, special for all machines

1шт.

14

591589R2

TIP

SWEEP, 7-1/2 inch, special for all machines

1шт.

15

591665R2

SWEEP

SWEEEP, 7-1/2 inch w/right wing clipped, special for trail behind, use w/wing prior to 1976 season, not recommended w/direct mounted

1шт.

16

591666R2

SWEEP

7-1/2 inch w/left wing clipped, special for trail behind, use w/wing prior to 1976 season, not recommended w/direct mounted

1шт.

17

591590R2

TIP

SWEEP, 9 inch, special for all machines

1шт.

18

591667R2

SHOVEL

SWEEP, 9 inch w/right wing clipped, special for trail behind, use w/wing prior to 1976 season, not recommended w/direct mounted

1шт.

19

591668R2

SHOVEL

SWEEP, 9 inch w left wing clipped, special for trail behind, use w wing prior to 1976 season, not recommended w/direct mounted

1шт.

20

597461R1

SHOVEL

SWEEP, 12 inch, special for all machines

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16-14 x 1-3 8 no 3 plow, ground working tool to shank

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

2шт.

21331R1

WASHER

.769 x 1.250 x .054, on lower bolt

1шт.

810220C1

PLOW BOLT,#3, 3/8" - 16 x 1.37"

BOLT, tool mounting special plow, for mounting groung working tool on competitor shanks

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
