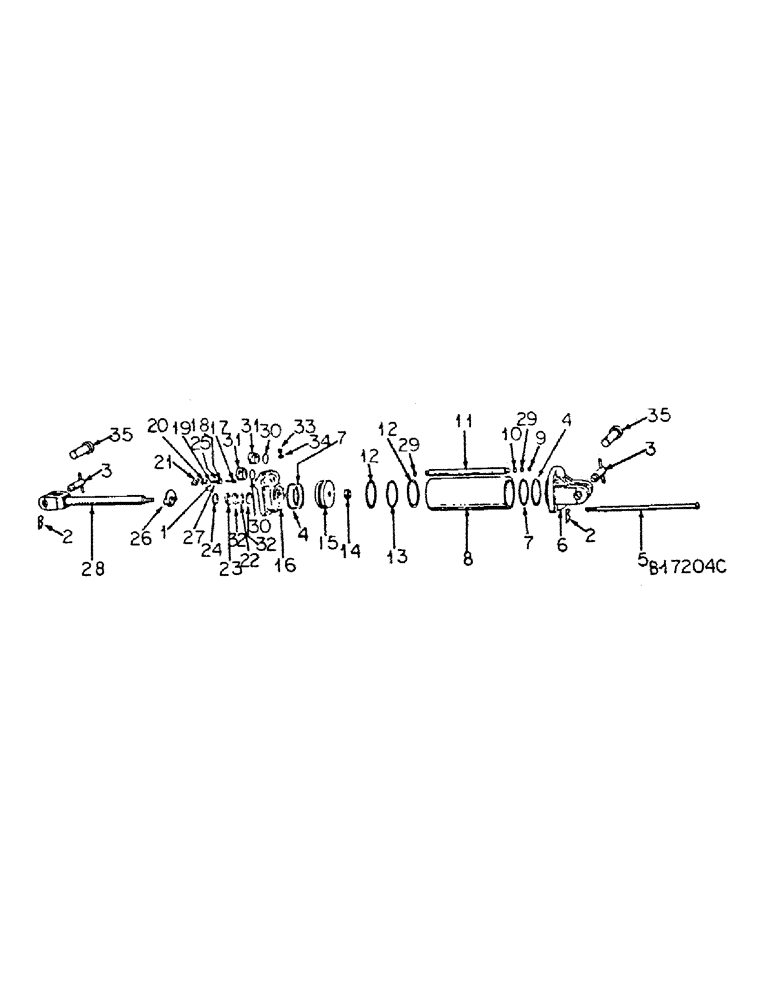

Запчасти Case IH 45 (C-22) - REMOTE CONTROL HYD CYL RECOMMENDED HYD FOR TRAC W/HYD SYSTEMS RATED UP TO 3000 PSI

403842R93

CYLINDER ASSY, 3.5 x 8 in. double acting hydraulic, 3000 PSI

1шт.

1

404026R1

BACK-UP RING

o-ring back-up

1шт.

2

520175R1

CLIP

PIN, quick-attachable cot

2шт.

3

352231R11

PIN

ASSY, cylinder pivot, used with 403842R91 or R92

2шт.

4

404015R1

BACK-UP RING

WASHER, head back-up

2шт.

5

404022R1

ROD,5/8" - 11 x 14"

tie

4шт.

25528R1

NUT,5/8"-11, G8

5/8-11 hex type 8

8шт.

6

547662R1

HEAD

rear, also order pin, 61571C1 if required

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3.234 x 3.512 x .210, front and rear head

2шт.

8

404021R1

SLEEVE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

.984 x 1.262 x .139, piston rod

1шт.

11

404023R1

TUBE

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3.100 x 3.520 x .021 piston

1шт.

14

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC hex lock

1шт.

15

404019R1

PISTON

1шт.

16

404014R1

HEAD

cylinder front

1шт.

17

404029R1

LOCK VALVE

VALVE ASSY, limit stop

1шт.

18

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

.612 x .818 x .103, limit stop valve housing

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

.176 x .316 x .070, limit stop valve housing

1шт.

20

404024R91

HOUSING

ASSY, limit stop valve, includes 1-404026R1, washer, 1-21590R1, o-ring and 1-404027R1, washer

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4-20 x 9/16 hex-hd

2шт.

22

400744R1

RING

quad

1шт.

23

383770R1

WASHER

WIPER, piston rod

1шт.

24

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

25

404028R1

BACK-UP RING

limit stop valve housing o-ring

1шт.

26

404034R1

CLAMP

ASSY, stroke limit, includes 1-181595, bolt

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 x 3/4 hex-hd

1шт.

27

404027R1

RETAINER

limit stop valve o-ring

1шт.

28

547661R1

ROD

ASSY, piston, also order pin, 61571C1 if required

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

.549 x .755 x .103, return tube

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.625 x .755 x .097

2шт.

31

9410360

PLUG

7/8-14 str thd o-ring boss

2шт.

32

403622R1

BACK-UP RING

WASHER, quad ring back-up

2шт.

33

404033R1

PLUG

front head

2шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

61571C1

PIN

cylinder pivot

2шт.

527324R91

STRIPPER PACKAGE

PACKAGE, hyd cyl seal ring, consists of 1, 4, 7, 9, 10, 12, 13, 18, 19, 22, 23, 25, 29, 32, 34

1шт.
