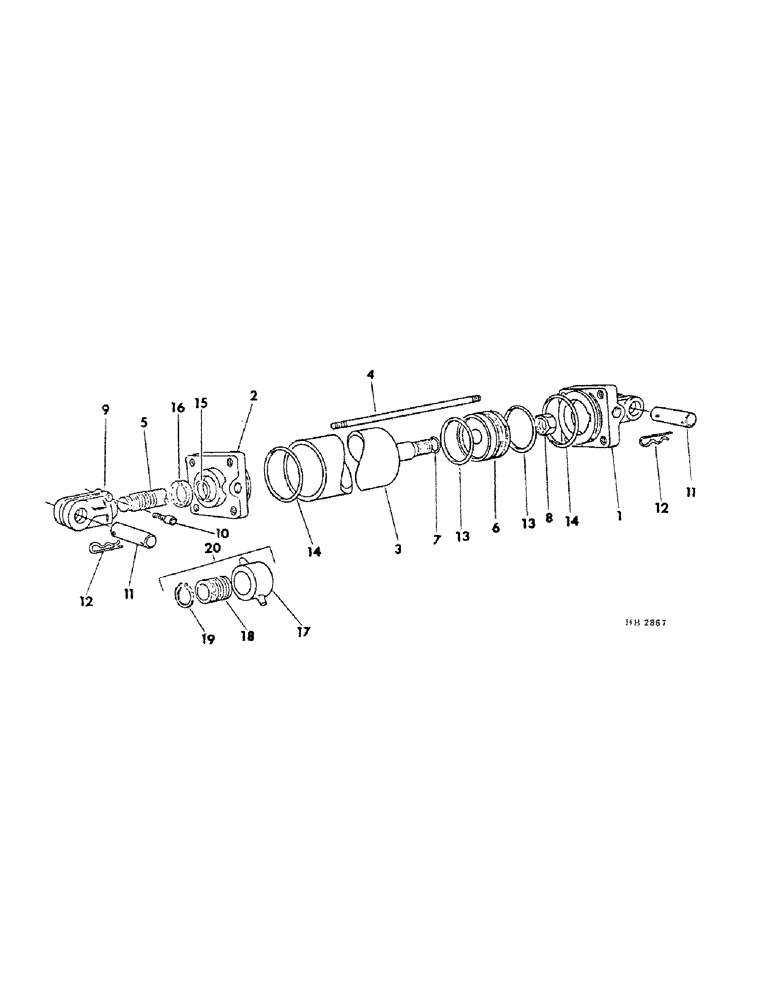

Запчасти Case IH 45 (C-20) - C-FRAME LIFT HYDRAULIC CYLINDER, MONARCH

844025C92

CYLINDER

CYL ASSY, 2-1/2 x 8 DA 2500 PSI

1шт.

1

844030C1

CAP

clevis

1шт.

2

844031C1

CAP

rod

1шт.

3

844039C1

TUBE

cyl

1шт.

4

844038C1

ROD

tie

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

844036C1

ROD

piston

1шт.

6

844033C1

PISTON

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Rod

1шт.

8

426767

NUT,7/8"-14, G5

7/8-14 hex

1шт.

9

844032C1

CLEVIS

rod

1шт.

10

NLS

NO LONGER SERVICED

3/8-16 x 1-3/4 hex skt hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

844035C1

PIN

end

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

12

599744R1

AXLE PIN

PIN, quick-attachable cot

2шт.

13

RING, not serviced separately order 1-844042C91

1шт.

14

O-RING, not serviced separately order 1-844042C91

1шт.

15

O-RING, not serviced separately order 1-844042C91

1шт.

16

OIL seal, not serviced separately order 1-844042C91

1шт.

17

(Not used this application)

1шт.

18

(Not used this application)

1шт.

19

(Not used this application)

1шт.

20

(Not used this application)

1шт.

844042C91

PACKAGE

KIT, seal consists of ref nos 13 thru 16

1шт.
