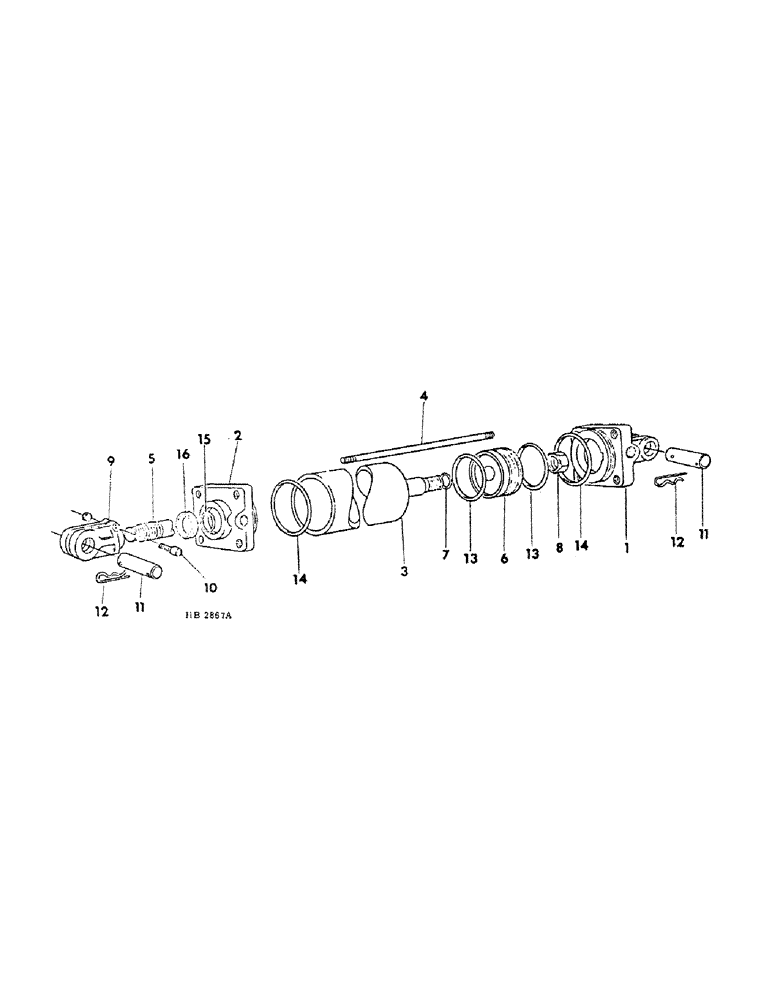

Запчасти Case IH 45 (C-19) - C-FRAME LIFT HYDRAULIC CYLINDER, MONARCH

844097C92

CYLINDER

CYL ASSY, 3 x 8 DA hyd

1шт.

1

844118C1

CAP

clevis

1шт.

2

844119C1

CAP

rod

1шт.

3

844120C1

TUBE

cyl

1шт.

4

844038C1

ROD

tie

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

844036C1

ROD

piston

1шт.

6

813134C1

PISTON

1шт.

7

574069R1

O-RING,0.750" ID x .062"

rod .750 x .875 x .063

1шт.

8

426767

NUT,7/8"-14, G5

7/8-14 hex pl

1шт.

9

844032C1

CLEVIS

rod

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

844035C1

PIN

end

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

12

599744R1

AXLE PIN

PIN, quick-attachable cot

2шт.

13

RING, not serviced separately order 1-844121C91, seal kit

2шт.

14

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2.750 x 3.000 x .125

2шт.

15

343905R1

O-RING,1.109" ID x 0.139" Width

1.125 x 1.375 x .125

1шт.

16

OIL SEAL, not serviced separately order 1-844121C91, seal kit

1шт.

844121C91

KIT, seal consists of ref nos 7, 13 thru 16

1шт.
