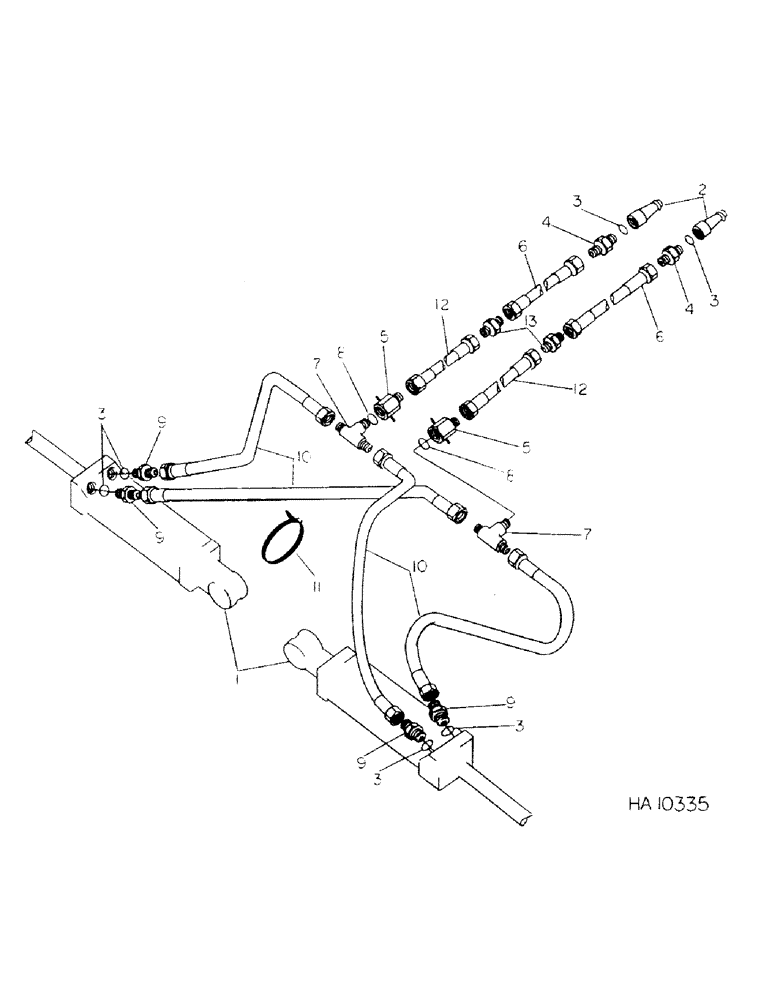

Запчасти Case IH 45 (C-16) - C-FRAME HYDRAULIC LIFT, RECOMMENDED HYDRAULICS

1

371291R96

CYLINDER BLOCK

CYL ASSY, 2.5 x 8 DA

2шт.

1

381854R93

CYLINDER

CYL ASSY, 3 x 8 DA, for components refer to c-frame lift hydraulic cylinder

2шт.

2

395149R1

QUICK MALE COUPLING

COUPLER, hyd male, opt w/544787R91, coupler

2шт.

2

544787R91

COUPLING, BREAK AWAY

COUPLER, hyd male, opt w/395149R1, coupler

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

4

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 3/4-16 hyd 37 deg flared tube to 7/8-14 reducer

2шт.

5

814056R1

VALVE, hyd restrictor

2шт.

6

810250C1

HOSE

3/8 x 114 hydraulic

2шт.

7

9411118

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

3/4-16 hyd 37 deg flared tube adj str thrd

2шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, tee

2шт.

9

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 3/4-16 hyd 37 deg flared tube to 7/8-14 reducer

4шт.

10

813537C1

HOSE ASSY.

HOSE, 3/8 x 65 hyd

4шт.

11

816502C1

STRAP

hose tie

8шт.

12

813267C1

HOSE

3/8 x 55 hyd

2шт.

13

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube

2шт.
