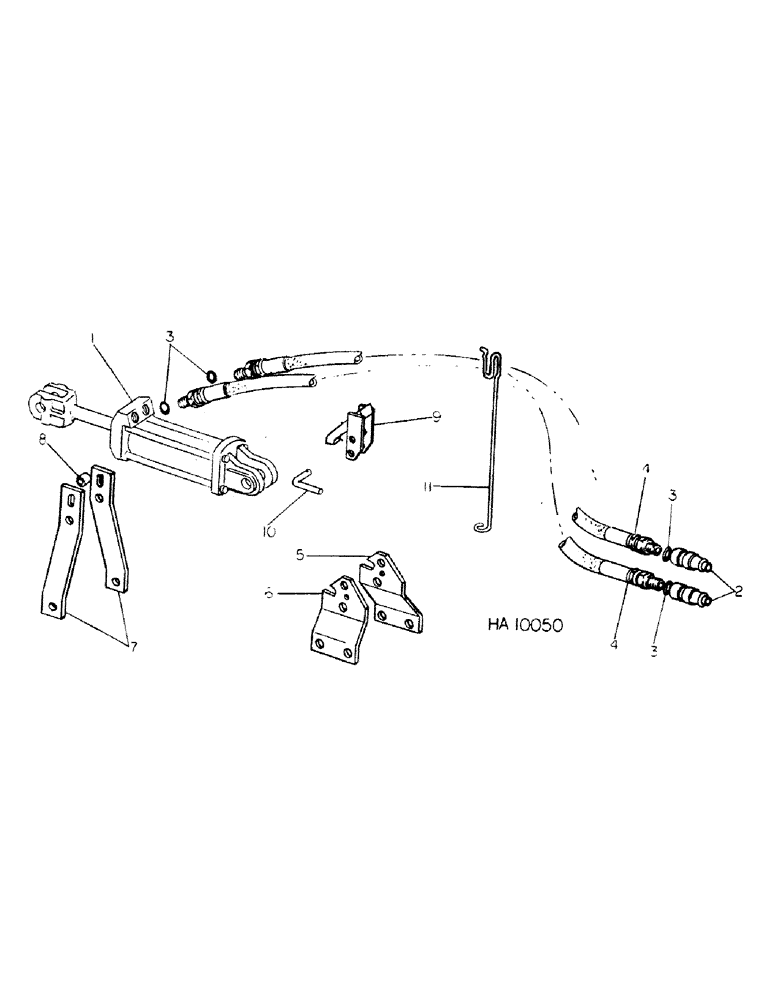

Запчасти Case IH 45 (C-14) - HYDRAULIC MOUNTING PARTS

1

403842R93

CYL ASSY, hyd 3.5 x 8 DA 3000 PSI

1шт.

1

61105C91

CYLINDER

CYL ASSY, hyd 3.5 x 8 DA 2500 PSI, without hydraulic stroke control

1шт.

1

371292R95

CYLINDER

CYL ASSY, hyd 3.5 x 8 DA 2500 PSI, recommended hydraulic parts, for components refer to remote control hyd cyl

1шт.

2

395149R1

QUICK MALE COUPLING

COUPLING, hose half male, opt w/544787R91, coupling

2шт.

2

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic, opt w/395149R1, coupling, recommended hydraulic parts

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

4шт.

4

372437R91

HOSE

1/2 x 112 inch tractor to remote control hrydraulic cylinder

2шт.

5

591527R1

BRACKET

hyd cyl mounting LH

1шт.

6

591528R1

BRACKET

hyd cyl mounting RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

7

591529R1

ARM

rockshaft hydraulic locking

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

8

5528S

SPACER

locking arm

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

811032C1

RETAINER

hydraulic cylinder

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

602801R1

PIN

retainer locking

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

11

651793R2

SUPPORT

flexible hose, 12 foot 6 inch model only

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
