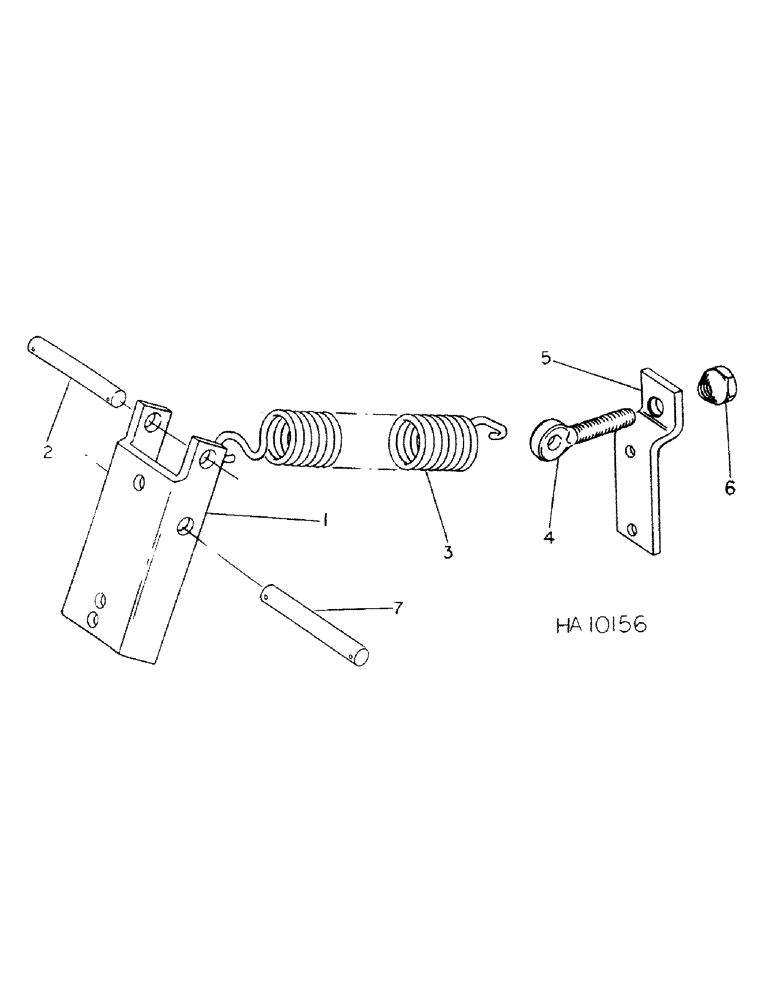

Запчасти Case IH 45 (C-12) - C-FRAME LIFT HELPER SPRING, SERIAL NO 5526 AND SINCE

1

813173C1

CHANNEL

helper spring

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 std-hd-dld

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

590258R1

VALVE SPRING

SPRING, lift helper

2шт.

4

496256R2

BOLT,3/4" - 10 x 5 5/8", Full Thd

spring eye

2шт.

5

813275C1

ANCHOR

helper spring

2шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

591650R1

NUT

eye bolt

2шт.

7

591647R1

AXLE PIN

PIN, hinge

2шт.
