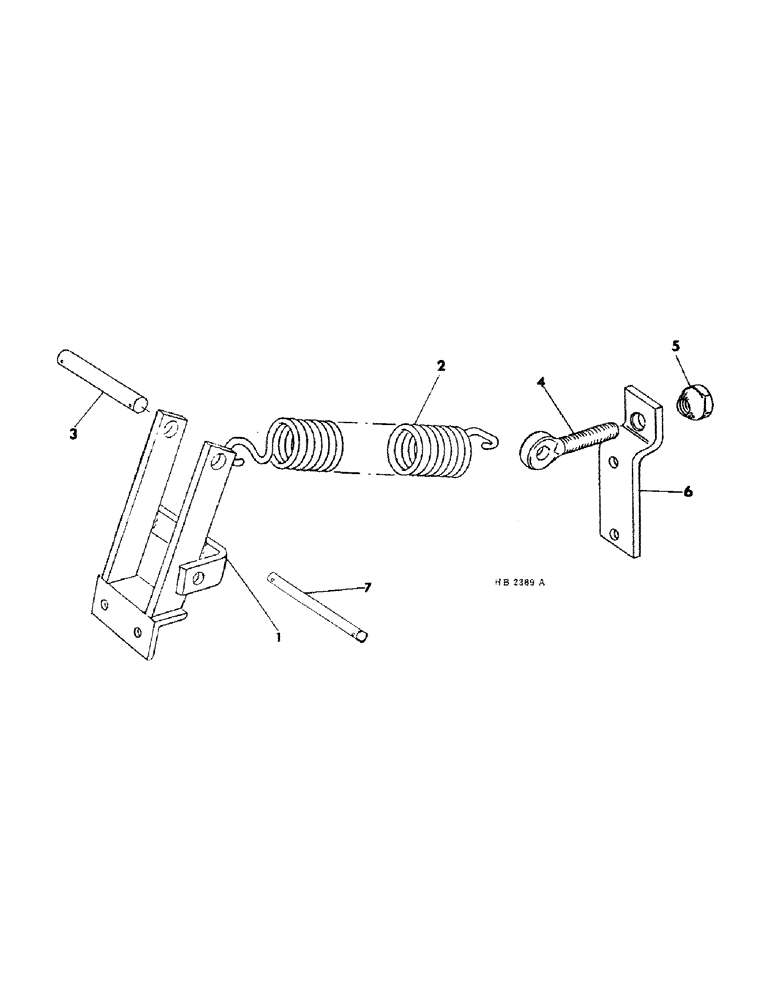

Запчасти Case IH 45 (C-11) - C-FRAME LIFT HELPER SPRING, PRIOR TO SERIAL NO 5526

1

591642R91

BRACKET ASSY, helper spring LH

1шт.

1

591643R91

BRACKET ASSY, helper spring RH

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

590258R1

VALVE SPRING

SPRING, lift helper

2шт.

3

591649R1

PIN

spring

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

4

496256R2

BOLT,3/4" - 10 x 5 5/8", Full Thd

spring eye

2шт.

5

591650R1

NUT

eye bolt

2шт.

6

591651R1

ANCHOR

helper spring

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

591648R1

PIN, hinge

2шт.
