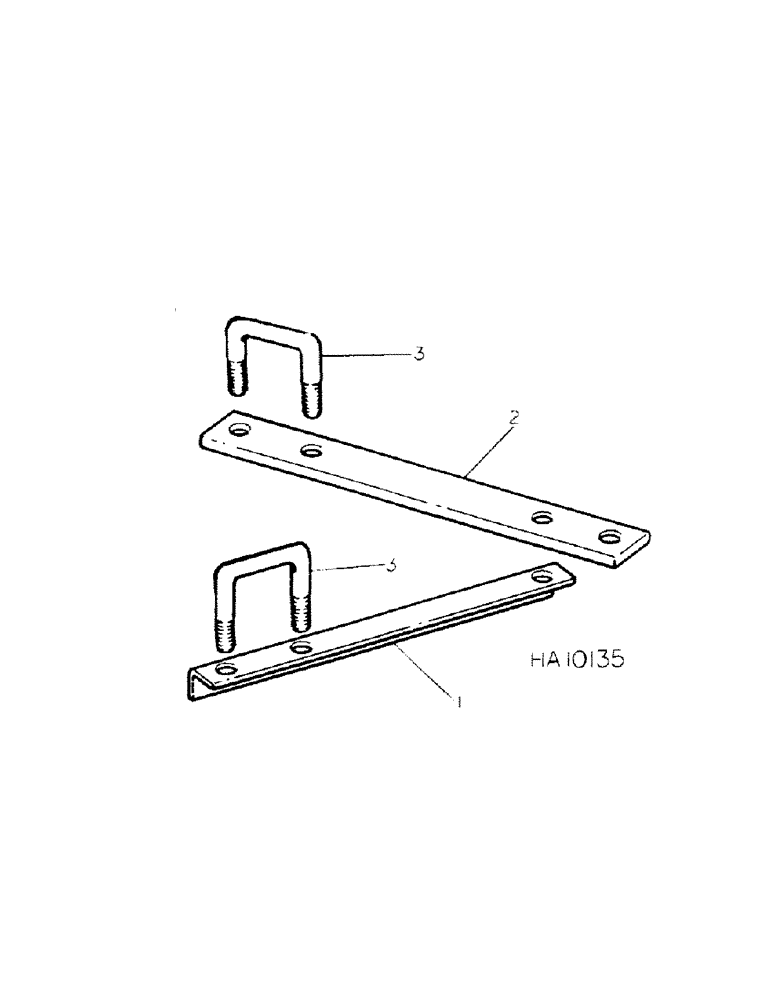

Запчасти Case IH 45 (C-09[B]) - TRAILING HITCH

1

591653R2

ANGLE

hitch

1шт.

2

591654R1

BAR

hitch

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

592406R1

BOLT,U, 3/4" - 10 x 4.62"

U-BOLT, hitch clamping

2шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.
