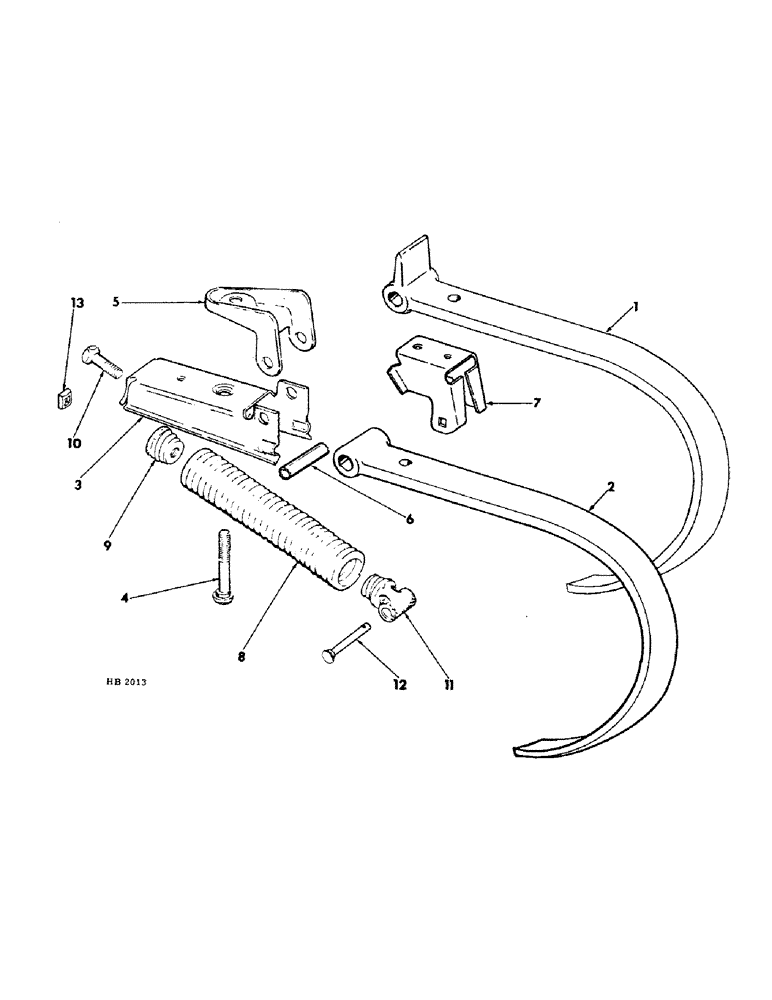

Запчасти Case IH 45 (A-2) - GROUND WORKING TOOLS & SHANKS W/SERRATED TYPE SHANK BUSHING, BUILT 1965-1970 SEASON

1

591549R1

SHANK

vibra, with lug, for serive order 813293C1

1шт.

2

813293C1

SHANK

vibra, without lug

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

BRACKET, shank w/o notch, for service order 1-811357C1, bracket, 1-811353C1, clamp and 1-811354C1, bushing

1шт.

4

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT, shank eccentric

1шт.

597670R1

NUT

1/2-13 hex lock

1шт.

5

591541R1

BRACKET

CLAMP, shank top

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2-13 x 3-1/2 type 8 hex-hd

1шт.

20835R1

NUT,1/2"-13, G8

1/2-13 type 8 hex

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 ext-tooth lock

2шт.

6

591543R2

BUSHING,13.13mm ID x 19.3mm OD x 55.63mm L

shank clamp, serrated

1шт.

7

591542R1

BRACKET

CLAMP, shank lower

1шт.

8

591546R1

SPRING

shank return

1шт.

9

591547R1

PLUG

spring front

1шт.

10

597671R1

BOLT,1/2" - 13 x 2.06", Gr 20

front plug

1шт.

11

591544R1

PLUG

spring rear

1шт.

12

591545R1

PIN,13.08mm OD x 61.98mm L

rear plug

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

13

SPACER, return spring front plug, not serviced separately, 1965 season to 1967 season order 1597671R1, bolt

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 carriage, 1965 season to 1967 season

1шт.
