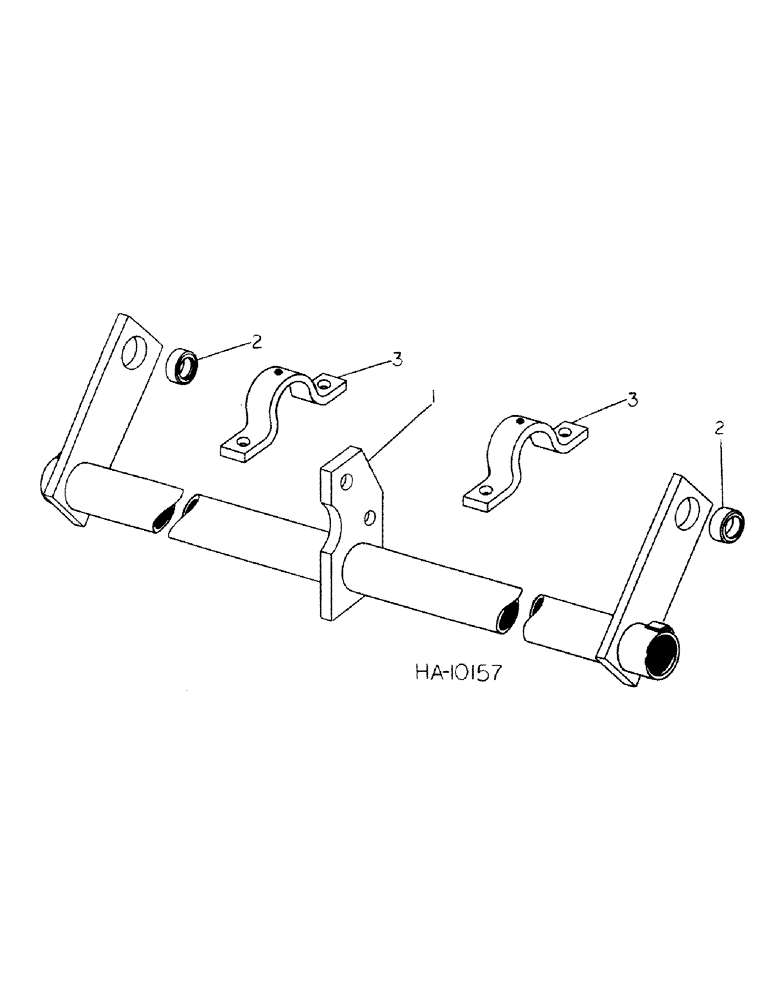

Запчасти Case IH 45 (C-07) - ROCKSHAFT UNIT

1

597710R91

ROCKSHAFT ASSY, 8 foot 6 inch, prior to serial no 5526

1шт.

1

813382C91

ROCKSHAFT ASSY, main , 8 foot 6 inch, serial no 5526 and since

1шт.

1

591521R92

ROCKSHAFT ASSY, 12 foot 6 inch, prior to serial no 5526

1шт.

1

811016C92

ROCKSHAFT ASSY, main, 12 foot 6 inch, serial no 5526 and since, includes 2-591525R1, bushing

1шт.

2

591525R1

BUSHING

rockshaft outer arm

2шт.

3

811038C1

CLAMP

rockshaft, 4 used 8 foot 6 inch, 6 used 12 foot 6 inch

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 special taper drive thread self tapping str lub, 1 used per clamp

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd, 2 bolts used per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 nut per bolt

1шт.
