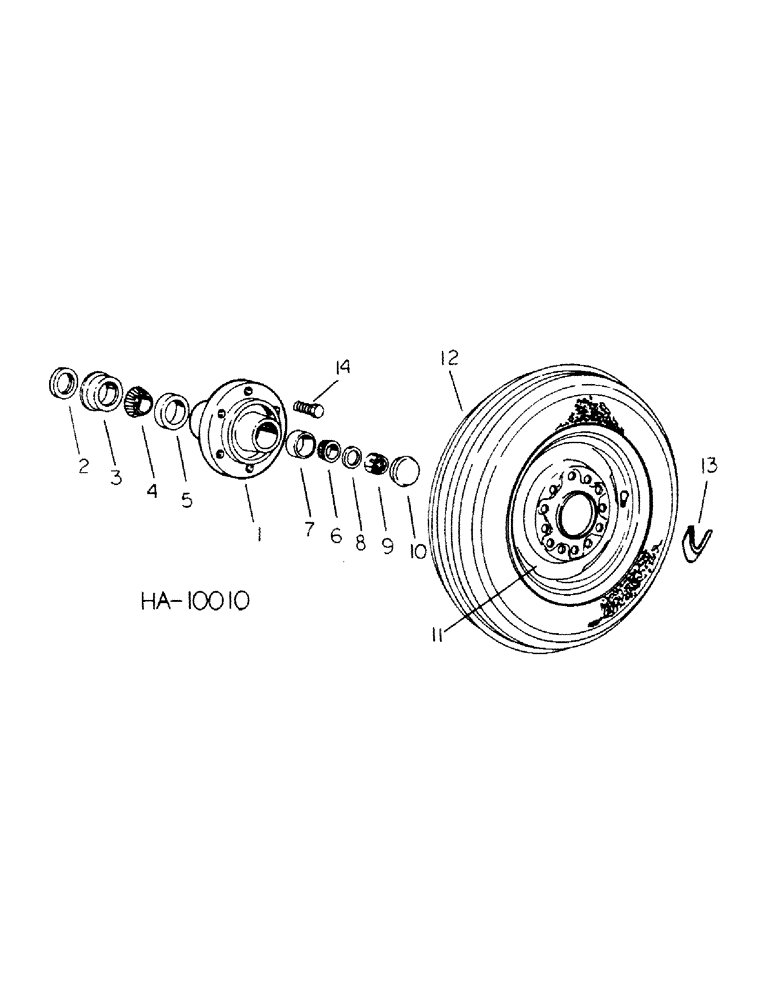

Запчасти Case IH 45 (C-06) - WHEEL AND HUB

1

591535R1

HUB

wheel, four bolt, for use on 8 foot 6 inch model, for use on 12 foot 6 inch model, built prior to September, 1969

2шт.

1

810087C1

HUB

main wheel, six bolt, for use on 12 foot 6 inch model, built September, 1969 and since

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

463036R1

WHEEL (STEERING)

DISK AND RIM ASSY, 14 x 5 KB, 8 foot 6 inch model, opt to use 1-455169R92 wheel

2шт.

11

455169R92

WHEEL

DISK AND RIM ASSY, 15 x 4-1/2 KB, 8 foot 6 inch model, opt to use 1-463036R1 wheel

2шт.

11

463036R1

WHEEL (STEERING)

DISK AND RIM ASSY, 14 x 5 KB, 12 foot 6 inch model built prior to September, 1969 season

2шт.

11

463034R1

RIM

DISK AND RIM ASSY, 14 x 5 KB, opt to use 1-622192R91, wheel, 12 foot 6 inch model built September, 1969 season and since

2шт.

11

622192R91

WHEEL

DISK AND RIM ASSY, 15 x 5 KB, 12 foot 6 inch model, opt to use 1-463034R1 wheel

2шт.

12

TIRE AND TUBE, 7.50-14/4 ply implement tread

2шт.

12

TIRE AND TUBE, 7.50-14 used auto

2шт.

12

TIRE AND TUBE, 7.00-14 used auto

2шт.

12

TIRE, 7.50-14 4 ply w1 tubeless

2шт.

387841R91

VALVE

tubeless tire tr 413

2шт.

12

811382C1

PACKAGE

tire valve guard service, includes 12 guards and one instructions pamphlet

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 7/8 wheel

1шт.
