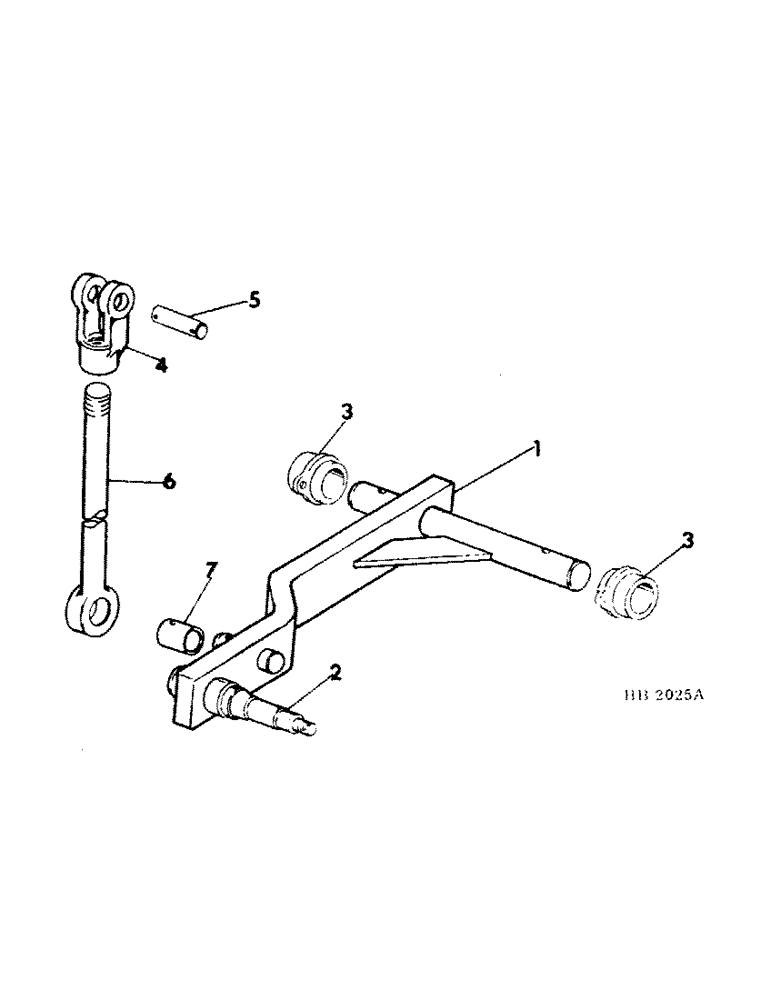

Запчасти Case IH 45 (C-04) - AXLE AND CONNECTIONS, PRIOR TO SERIAL NO. 5526

1

591530R93

AXLE ASSY, main wheel

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

2

811159C91

SPINDLE

axle, welded

2шт.

3

BEARING, gauge wheel axle, for service order 813201C1 bearing

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

591536R1

YOKE

lift link eyebolt

2шт.

5

591537R2

PIN

lift link eyebolt

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

6

591538R1

BOLT, lift link eye

2шт.

7

608323R1

BUSHING

eyebolt

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.
