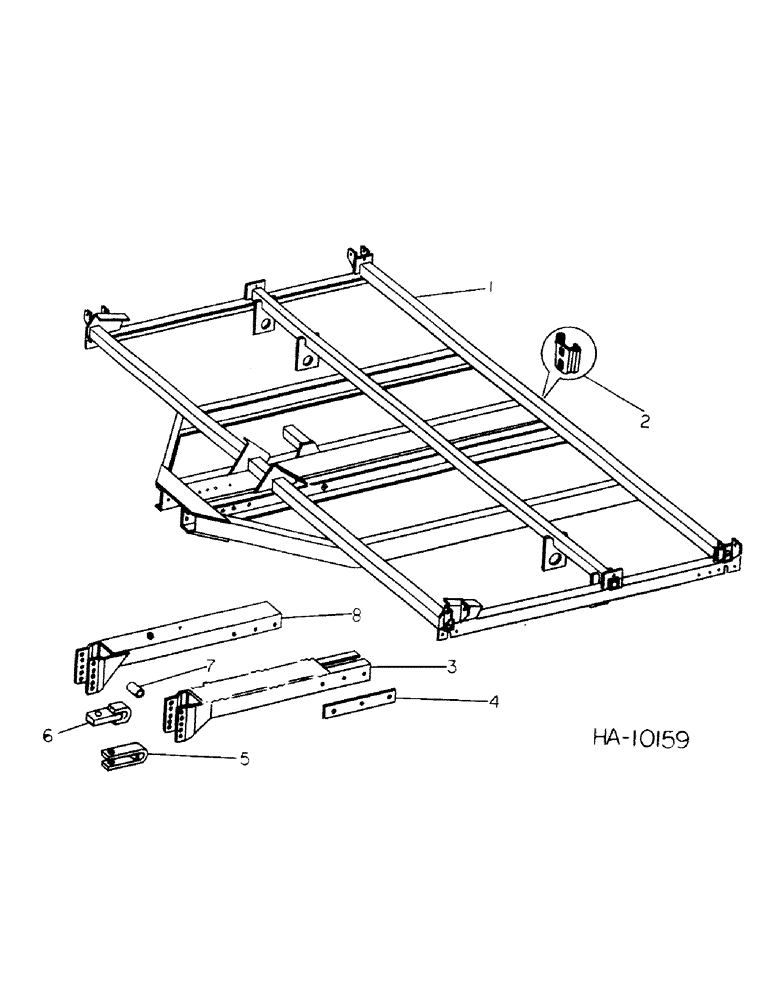

Запчасти Case IH 45 (C-03) - MAIN FRAME AND HITCH, 12 FOOT 6 INCH MODEL

1

591491R92

FRAME ASSY, 12 foot 6 inch main, prior to serial no. 5526

1шт.

1

811552C91

FRAME

ASSY, 12 foot 6 inch main, serial no. 5526 and since, includes 1-61907C1

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution general warning

1шт.

2

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

HITCH ASSY, prior to serial no 5526, for service order 811037C1 hitch

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

4

592807R1

BAR, extension shim, built 1965 - 1966 season only

2шт.

4

592808R1

BAR, extension shim 03 inches thick, prior to serial no. 5526

1шт.

4

811026C1

BAR

hitch spacer 19 inches thick, serial no. 5526 and since

1шт.

5

608499R21

CLEVIS

ASSY, hitch, regular

1шт.

6

605866R91

TOW BAR

TONGUE ASSY, hitch, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

597326R1

SPACER

clevis bolt, for use w/special heavy duty clevis

1шт.

8

811037C1

TRAILER HITCH

HITCH ASSY, serial no. 5526 and since

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4-10 x 7 hex-hd

3шт.

280954

NUT,3/4"-10, G5

3/8-10 hex

3шт.
