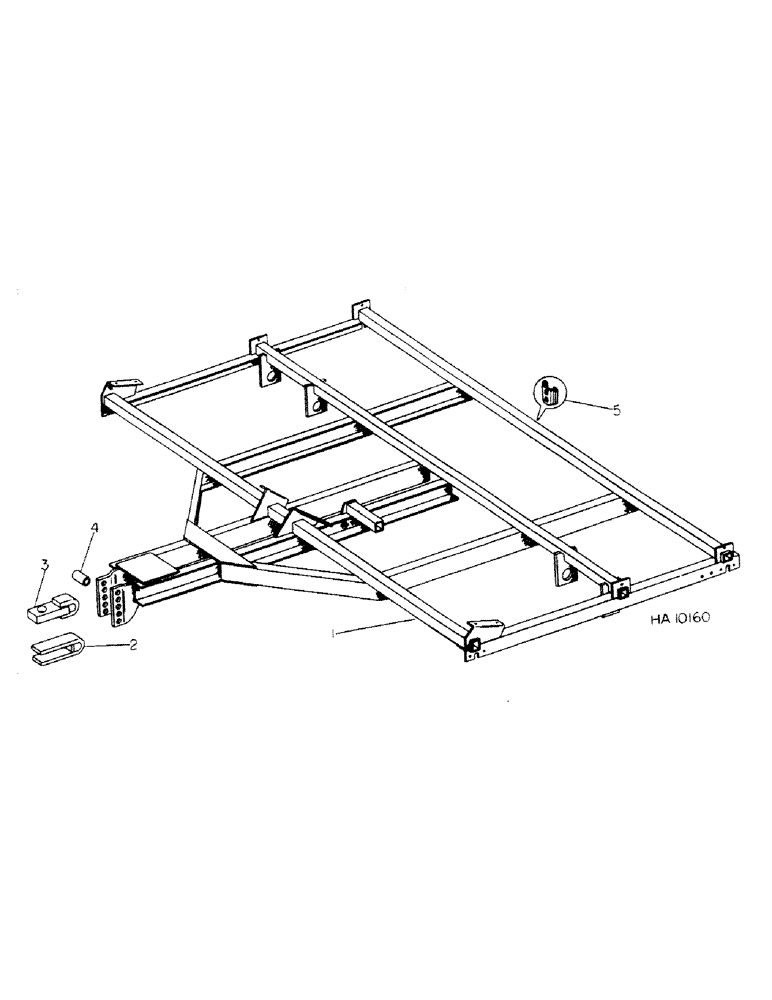

Запчасти Case IH 45 (C-02) - MAIN FRAME AND HITCH, 8 FOOT 6 INCH MODEL

1

811534C91

FRAME

ASSY, 8 foot 6 inch main, replaces 597706R2, includes 1-61907C1

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution general warning

1шт.

2

608499R21

CLEVIS

ASSY, hitch, regular

1шт.

3

605866R91

TOW BAR

TONGUE ASSY, hitch, special heavy duty

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd-dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

614451R1

WASHER

1.031 x 1.750 x .150

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

4

597326R1

SPACER

clevis bolt, for use w/special heavy duty clevis

1шт.

5

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
