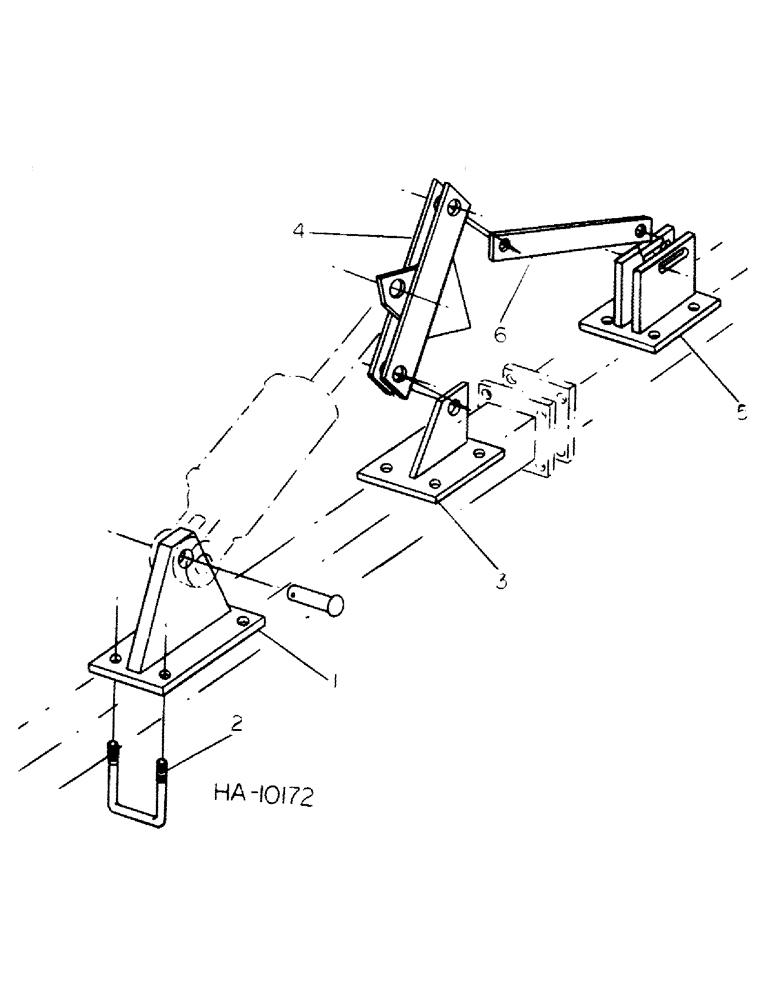

Запчасти Case IH 45 (B-16) - C-FRAME HYDRAULIC LIFT, 16 FOOT 6 INCH AND LARGER MODEL WITH 6 INCH SPACING

1

810245C1

SUPPORT

assy, hyd cylinder

2шт.

2

591609R1

BOLT

U-BOLT, support mounting

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

3

810227C1

SUPPORT

assy, lift lever

2шт.

4

810223C1

LEVER

assy, extension lift

2шт.

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

5

810229C1

SUPPORT

assy, extension lift

2шт.

6

810226C1

BAR

extension lift connecting

2шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 1

2шт.

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

21753R1

WASHER

.781 x 1.500 x .203 pln

8шт.
