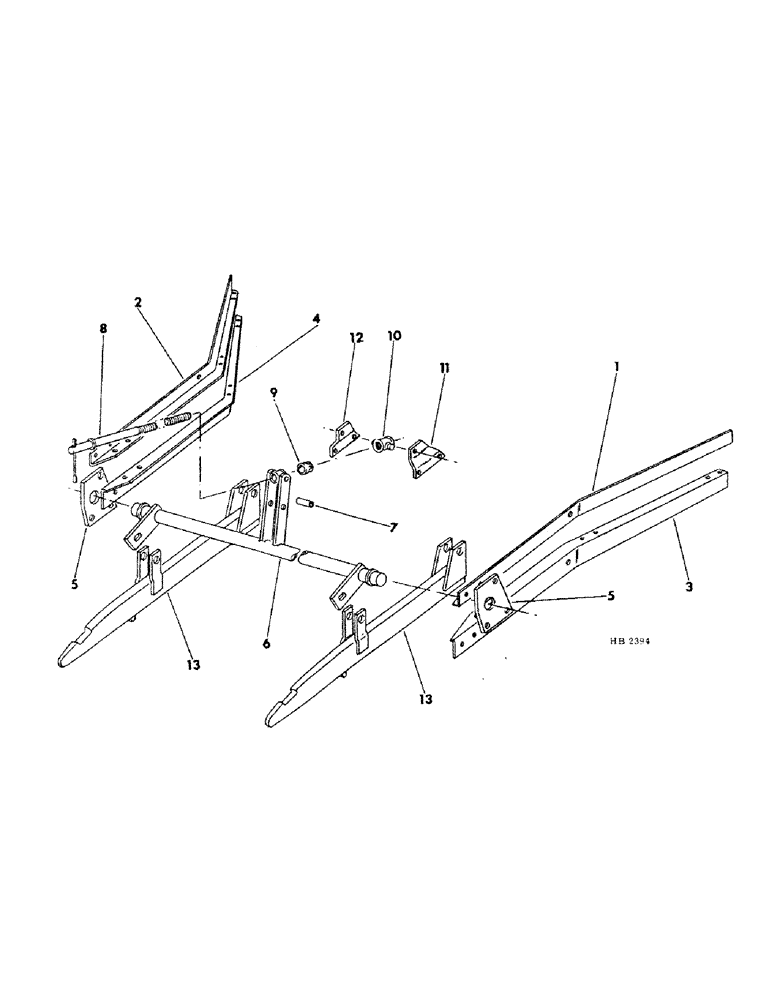

Запчасти Case IH 45 (B-15) - FAST HITCH, FOR 12 FOOT 6 INCH MODEL ONLY, BUILT PRIOR TO MAY 1974 SEASON

1

591567R1

SUPPORT, fast hitch upper LH

1шт.

2

591568R1

SUPPORT, fast hitch upper RH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

3

591569R11

SUPPORT assy, lower LH

1шт.

4

591570R11

SUPPORT assy, lower RH

1шт.

5

592418R2

BLOCK, rockshaft support

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

6шт.

280954

NUT,3/4"-10, G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

6

592420R92

ROCKSHAFT assy, fast hitch

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg elbow lub

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

23929S

SPACER,3/8" Pipe x 1 7/8"

fast hitch rockshaft

1шт.

8

591579R11

SCREW assy, hitch levelling

1шт.

9

590303R1

COLLAR CLAMP

COLLAR, levelling screw

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd-dld

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

10

600567R1

NUT

SWIVEL, levelling screw

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

591581R1

SUPPORT, levelling screw rear LH

1шт.

12

591582R1

SUPPORT, levelling screw rear RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

13

591583R21

BEAM assy, hitch coupling

2шт.

932388R1

PIN,1" x 3 1/2"

1 x 3-1/2 std-hd-dld rear

2шт.

457696R1

PIN

1 x 2-7/16 std-hd-dld front

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.
