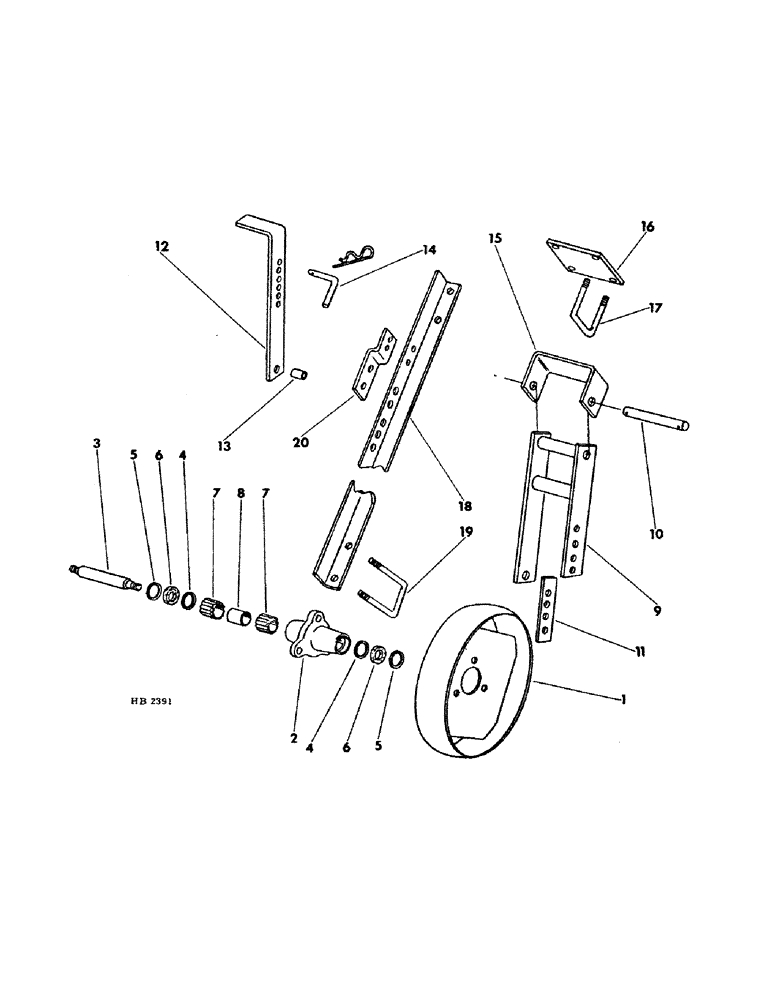

Запчасти Case IH 45 (B-14) - STEEL GAUGE WHEEL, PRIOR TO 1973 SEASON

1

602434R91

WHEEL assy, steel gauge

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 carriage

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

602421R1

HUB

steel gauge wheel

2шт.

18541R91

LUBE NIPPLE

FITTING, 5/16-32 NF lub

2шт.

3

602423R11

AXLE

assy, steel gauge wheel, includes 2-120378 nut and 2-120384 lockwasher

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

4шт.

5

467750R1

WASHER

.781 x 1.500 x .105

4шт.

6

602432R1

WASHER

felt

4шт.

7

602433R91

BEARING

wheel axle

4шт.

8

F17274

SPACER, axle bearing

2шт.

9

602725R92

FORK TEDDER

ARM assy, wheel axle

2шт.

10

602718R1

AXLE PIN

PIN, arm pivot

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

20703R1

WASHER

.906 x 1.750 x .054

4шт.

11

602722R2

CABLE EXTENSION

BAR, axle arm extension

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

12

602427R1

SUPPORT ASSY.

SUPPORT, steel wheel adjusting

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 x 1-3/4 hex-hd

2шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.

13

3451N

SPACER, adjusting support

2шт.

14

602424R1

ROD

support locking

2шт.

591107R1

COTTER PIN

quick-attachable support

2шт.

15

592668R1

BRACKET

CHANNEL, axle arm support

2шт.

16

592667R1

BLOCK

arm support channel

2шт.

17

592669R1

U-BOLT, support channel

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

18

592666R1

ANGLE

gauge wheel stop

2шт.

19

591609R1

BOLT

U-BOLT, stop angle mounting

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20

602428R1

BRACE

adjusting support

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
