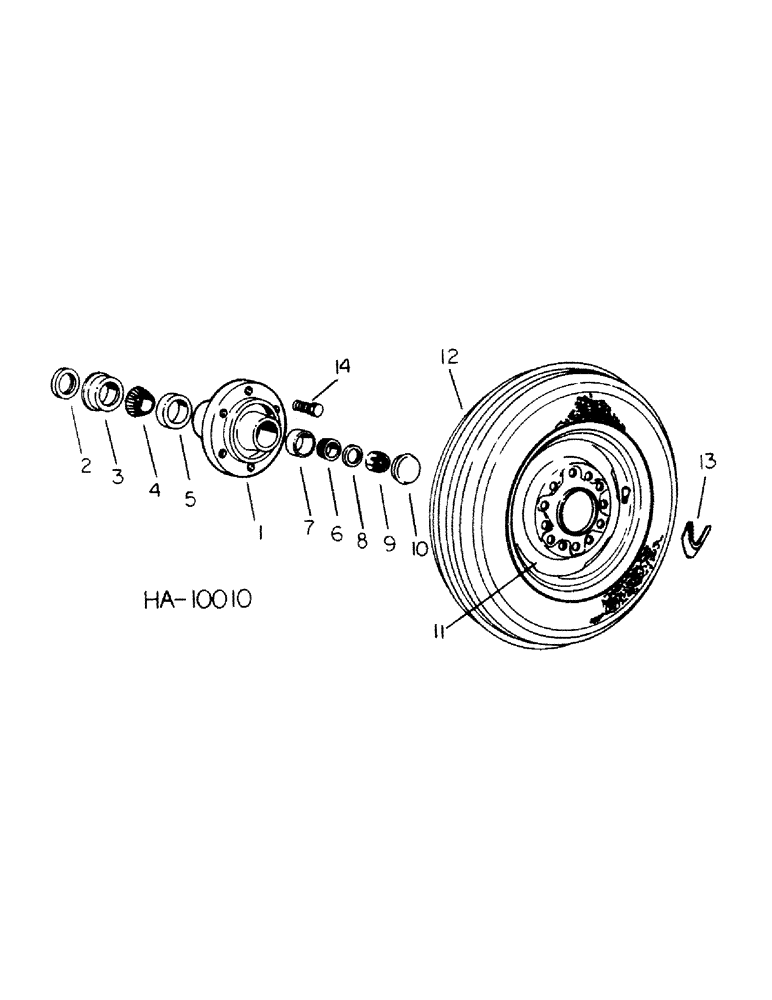

Запчасти Case IH 45 (B-13) - PNEUMATIC GAUGE WHEEL AND HUB

1

591535R1

HUB

gauge wheel

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.5000 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex-sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

609377R1

RIM

WHEEL half, 400 x 9E, without valve hole, 8 hole mtg type

2шт.

11

490311R1

WHEEL

half, 400 x 9E, without valve hole, 5 hole mtg type

2шт.

11

609378R1

NO LONGER SERVICED

WHEEL half, 400 x 9E, with valve hole, 8 hole mtg type

2шт.

11

490312R1

WHEEL

half, 400 x 9E, with valve hole

2шт.

12

TIRE AND LUBE, 600 x 9 rib implement 4 ply type 1-1

2шт.

13

811383C1

PACKAGE, tire valve guard service, includes 12 guards and 1 instructions pamphlet

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hes-hd, 2 per wheel half, wheel halves bolted together

1шт.

14

181696

BOLT, 1/2-20 x 1 hex-hd, wheel halves bolted to hub

8шт.

120377

NUT,3/8" - 16, Gr 5

2 per wheel half 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 2 per wheel half 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.
