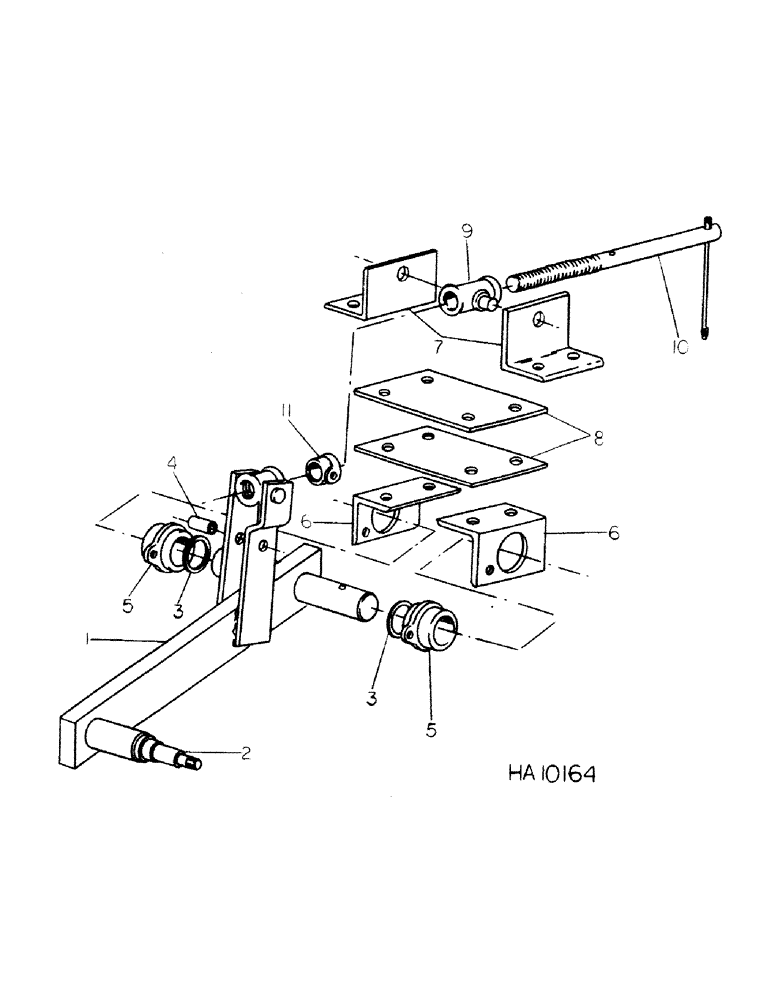

Запчасти Case IH 45 (B-12) - PNEUMATIC GAUGE WHEEL MOUNTING, CENTER MOUNTED AXLE TYPE

1

813279C91

AXLE

assy, gauge wheel LH

1шт.

THE UPRIGHT SWIVEL ON THIS ASSY IS P/N 600567R1. 5 THDS PER IN CLASS 2G. LENGTH IS 2 1/8 BY 1 9/16.

1шт.

1

813280C91

AXLE assy, gauge wheel RH, includes 1-591616R1 spindle

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

108659

PIN

5/16 x 2-3/4 cotter

4шт.

2

591616R1

SPINDLE

axle welded

2шт.

3

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

4

M22613

SPACER,1/2" X-Strng Pipe x 1"

adjusting screw nut

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING, gauge wheel axle

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

6

813276C1

ANGLE

wheel mounting

4шт.

7

813277C1

ANGLE

level screw mounting

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

8

813278C1

BAR

gauge wheel mounting

4шт.

9

SA1658

ADJUSTMENT SCREW

TRUNNION, screw

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

591620R11

SCREW

assy, wheel levelling

2шт.

11

590303R1

COLLAR CLAMP

COLLAR, levelling screw

2шт.

1380S

PIN

5/16 x 1-3/4 std-hd-dld

2шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

2шт.
