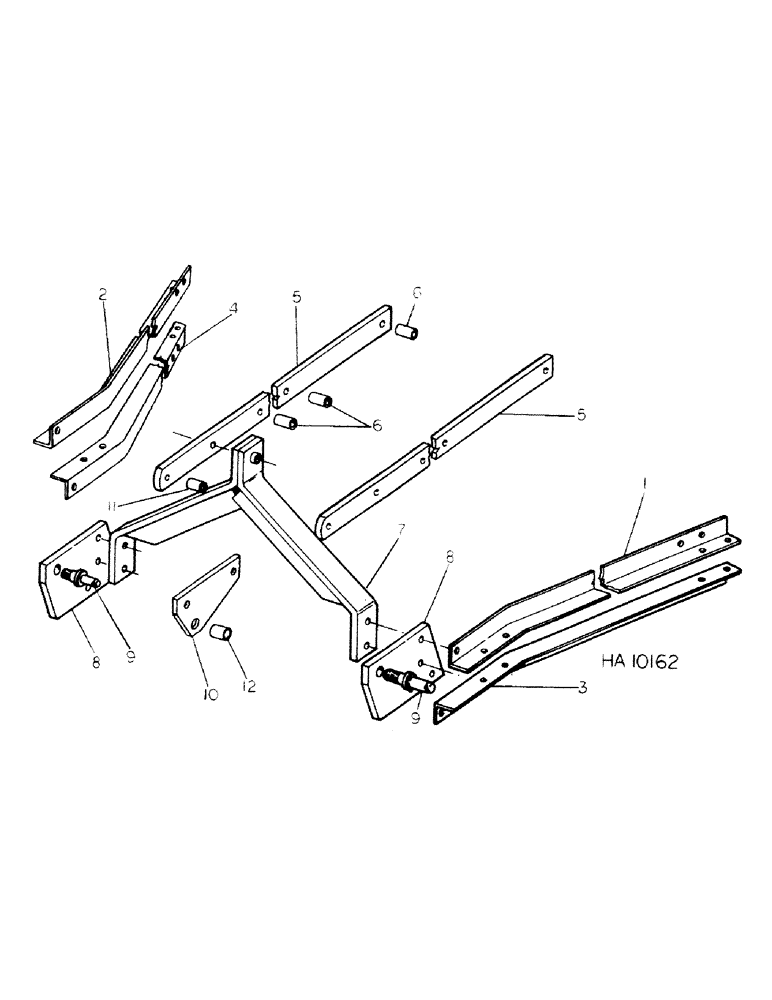

Запчасти Case IH 45 (B-09) - THREE POINT HITCH

1

591562R2

ANGLE

hitch upper support LH

1шт.

2

591563R2

ANGLE

hitch upper support RH

1шт.

3

591564R2

ANGLE

hitch lower support LH

1шт.

4

591565R2

ANGLE

hitch lower support RH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

5

591553R1

BAR, hitch connecting, 8 foot 6 inch machine built prior to the 1968 season

2шт.

5

591554R2

BAR, hitch connecting 12 foot 6 inch machine built prior to the 1968 season

2шт.

5

597804R1

BAR

hitch connecting 8 foot 6 inch machine built the 1968 season and since

2шт.

5

597805R1

BAR, hitch connecting 12 foot 6 inch machine built the 1968 season and since

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4-10 x 4-1/2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

608460R1

SPACER

connecting bar, 3 used prior to 1974 season, 2 used 1974 season and since

1шт.

NLS

NO LONGER SERVICED

BOLT, 3/4-10 x 4-1/2 hex-hd

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4-10 x 5 hex-hd

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

591555R91

TRAILER HITCH

HITCH assy, three point

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex-hd

2шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

8

591561R1

BAR, hitch angle support, machines, Serial Range: prior-1968

2шт.

597803R1

BAR

hitch angle support, machines built 1968 and since

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

9

470511R1

STUD

category 1 lower link, 8 foot 6 inch machine, prior to 1978 season

2шт.

426767

NUT,7/8"-14, G5

7/8-14 hex

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

9

472790R1

STUD

category 11 lower link, 8 foot 6 inch and 12 foot 6 inch

2шт.

9

427359

NUT,1 1/8"-12, G5

1-1/8-12 hex

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 lock

2шт.

10

597806R1

PLATE, adapting, 8 foot 6 inch machine, prior to 1978 season

2шт.

10

597807R1

PLATE

adapting, 12 foot 6 inch machine

2шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4-10 x 5-1/2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

11

27260

SPACE hitch connecting bar, 8 foot 6 inch machine, prior to 1978 season

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4-10 x 5-1/2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

11

PO27260

SPACER,1" Pipe x 2"

hitch connecting bar, 12 foot 6 inch machine

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1-8 x 6 hex-hd

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

12

597802R1

SPACER

BUSHING, adaptor plate

1шт.

21928R1

BOLT,Hex, 1"-8 x 6", G8

1-8 x 6 type 8 hex-hd

1шт.

21929R1

NUT,1"-8, G8

1-8 type 8 hex

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.
