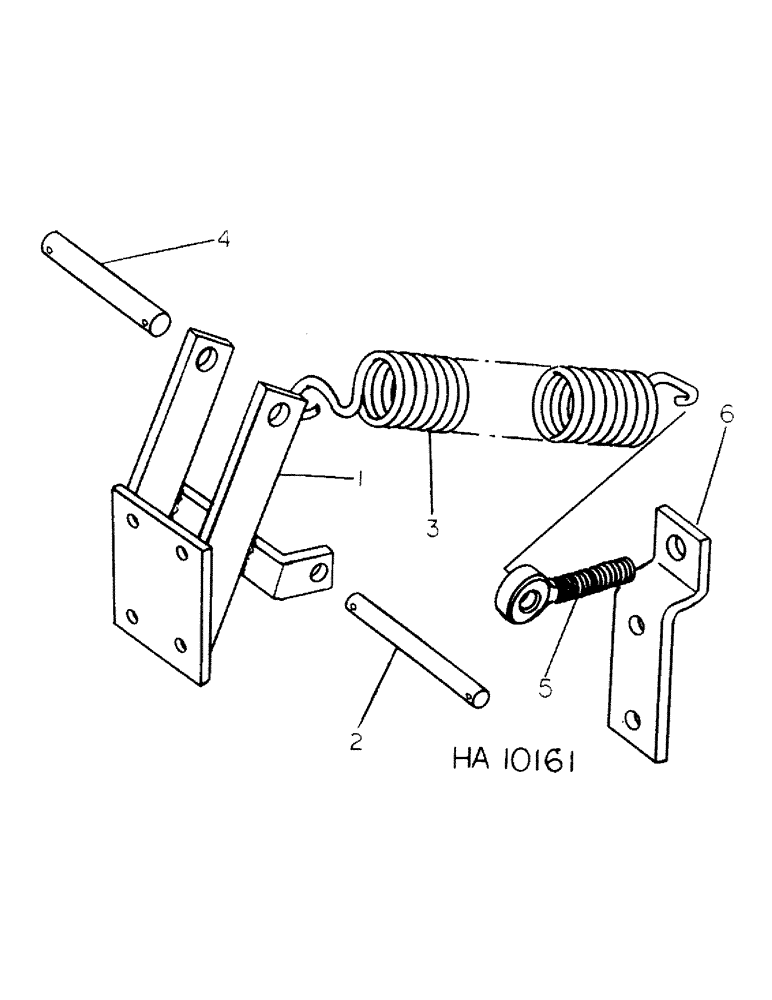

Запчасти Case IH 45 (B-07) - C-FRAME LIFT HELPER SPRING, 12 FOOT 6 INCH MODEL ONLY, USED WITH C FRAME HINGE

1

591638R91

ANCHOR

BRACKET assy, helper spring LH

1шт.

591639R91

ANCHOR

BRACKET assy, helper spring RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

591647R1

AXLE PIN

PIN, hinge

2шт.

3

590258R1

VALVE SPRING

SPRING, lift helper

2шт.

4

591649R1

PIN

spring

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

5

496256R2

BOLT,3/4" - 10 x 5 5/8", Full Thd

spring eye

2шт.

591650R1

NUT

eye bolt

2шт.

6

591651R1

ANCHOR

helper spring

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
