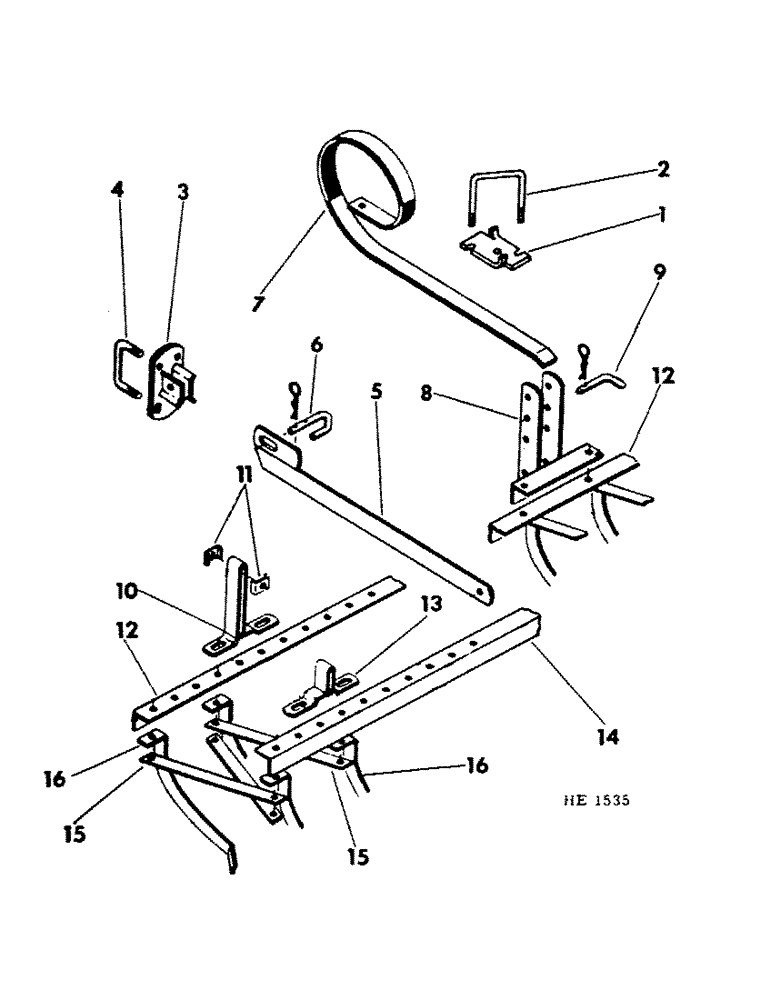

Запчасти Case IH 45 (G-09) - 14 FOOT, 10 INCH MULCHER

1

737515R1

SUPPORT ASSY.

CLAMP, spring support

1шт.

2

737516R1

U-BOLT

spring support clamp

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.00 x .106

2шт.

3

812459C1

HANGER, mulcher

2шт.

4

811199C1

U-BOLT, mulcher hanger

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

812475C1

BAR, hitch

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hs

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

812458C1

PIN, hitch bar

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

7

812474C1

SPRING, mulcher

1шт.

8

812472C1

POST, spring support

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

812473C1

PIN, spring locking

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

10

812462C1

SUPPORT, angle front

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

11

812461C1

CLAMP, hitch bar stop

4шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

812464C1

ANGLE, mulcher front LH, 38 tine

1шт.

12

812466C1

ANGLE, mulcher front LH, 20 tine

1шт.

12

812465C1

ANGLE, mulcher front RH, 38 tine

1шт.

12

812467C1

ANGLE, mulcher front RH, 20 tine

1шт.

13

812471C1

SUPPORT, angle rear

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8-16 x 1-3/8 hex-hd

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

14

812465C1

ANGLE, mulcher rear LH, 38 tine

1шт.

14

812467C1

ANGLE, mulcher rear LH, 20 tine

1шт.

14

812464C1

ANGLE, mulcher rear RH, 38 tine

1шт.

14

812466C1

ANGLE, mulcher rear RH, 20 tine

1шт.

15

812469C1

BAR, angle reinforcing

37шт.

16

812470C1

TINE, mulcher

58шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

46шт.

120377

NUT,3/8" - 16, Gr 5

46шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

46шт.
