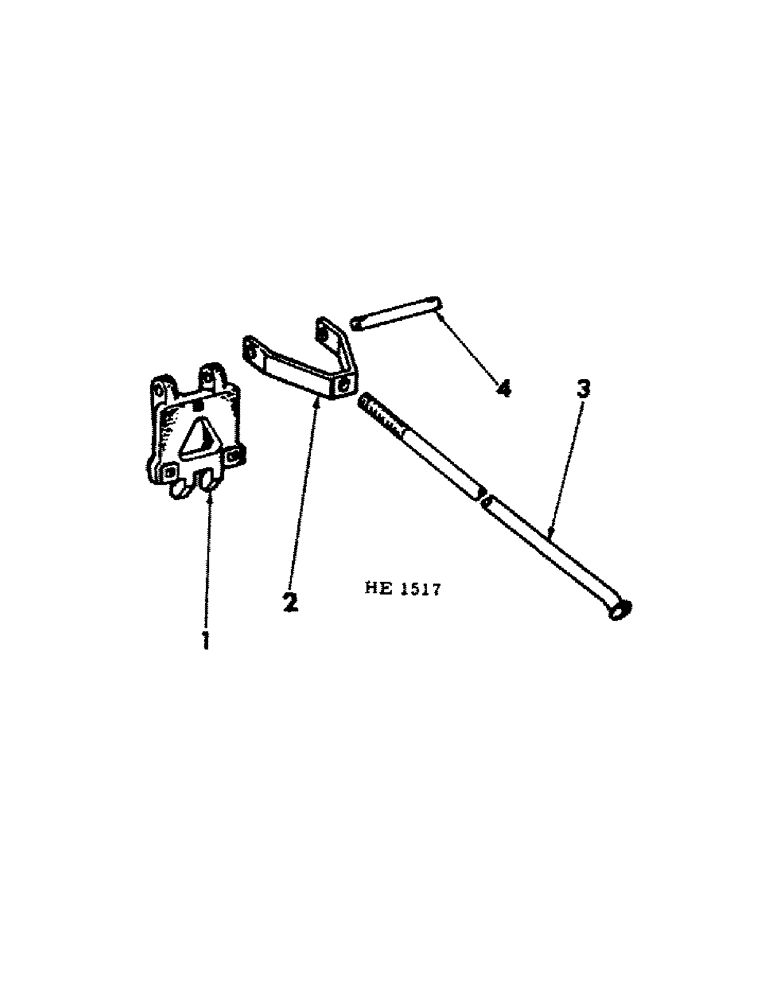

Запчасти Case IH 45 (G-05[A]) - C FRAME TRUSS ROD

1

591605R1

HINGE

BRACKET, inner hinge extension

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

591630R1

BRACKET

SUPPORT, truss rod

2шт.

3

811158C1

ROD, frame truss

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

591631R1

AXLE PIN

PIN, truss rod hinge

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.
