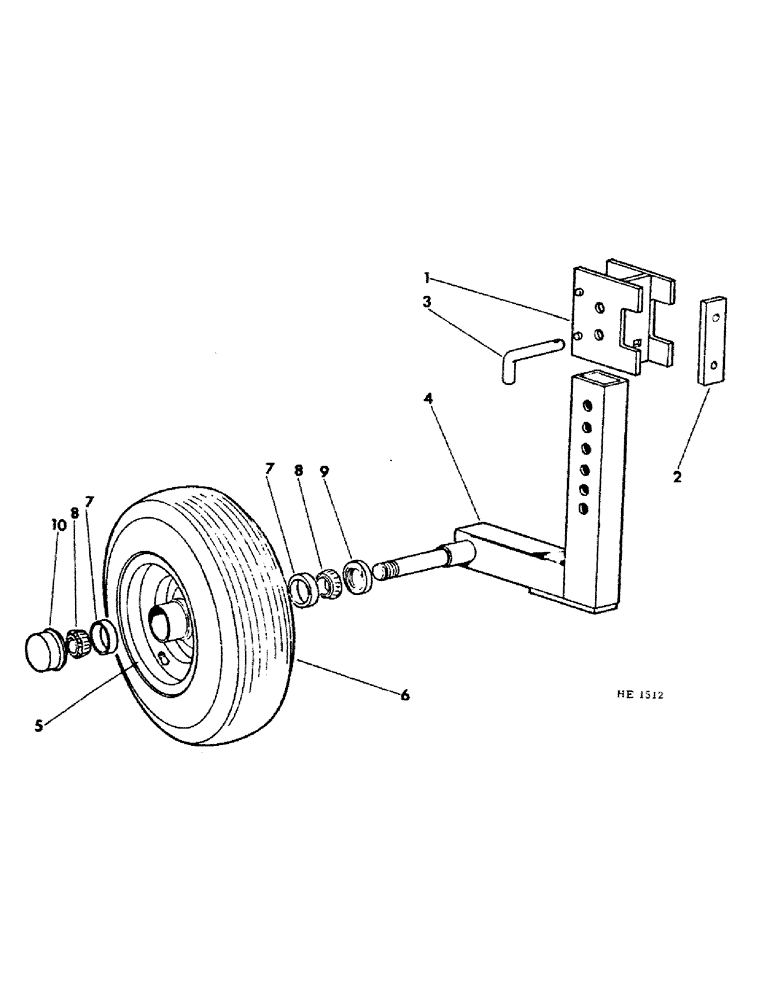

Запчасти Case IH 45 (G-03) - GAUGE WHEEL

1

811188C1

SUPPORT ASSY, wheel

2шт.

2

430878C1

BAR, support clamp

2шт.

936339R1

BOLT, 7/16-14 x 3-1/2 no. 3 plow

4шт.

271501

SOCKET

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

3

811790C1

AXLE PIN

ROD, gauge wheel axle retaining

2шт.

599744R1

AXLE PIN

PIN, qa cotter

2шт.

4

811161C91

AXLE ASSY, gauge wheel LH

1шт.

4

811163C91

AXLE ASSY, gauge wheel RH includes 1-427652, nut and 1-103410, cotter pin

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, wheel retaining

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

5

811010C1

WHEEL

gauge

1шт.

6

TIRE & TUBE, 4.00 x 8 4 ply 1-6 smooth pneumatic

2шт.

7

572564R1

BEARING CUP

CUP, wheel bearing

4шт.

8

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE, wheel bearing

4шт.

9

811011C1

SEAL

wheel oil

2шт.

10

811012C1

CAP

hub

2шт.
