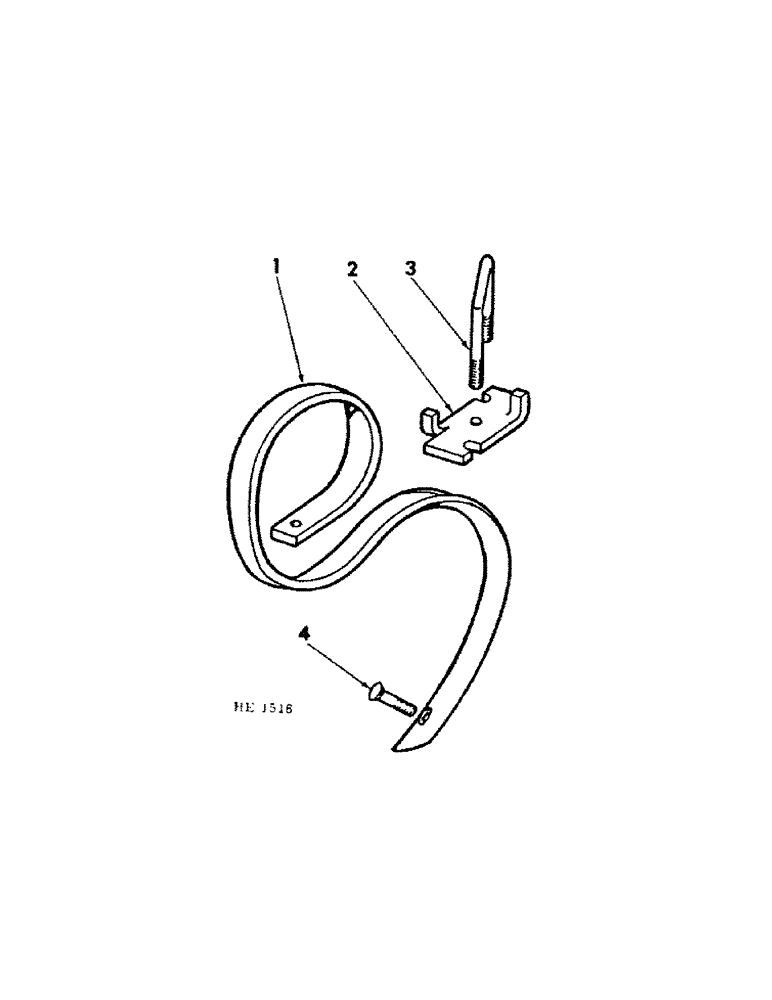

Запчасти Case IH 45 (G-02B) - VIBRA TINE CULTIVATOR SHANK

1

734553R2

TINE

SHANK, vibra tine

1шт.

2

737515R1

SUPPORT ASSY.

CLAMP, vibra shank

1шт.

3

737516R1

U-BOLT

vibra shank clamp

1шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

734808R21

BOLT

vibra tine tool mounting

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

105606

NUT

3/8-16 square

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

80158H

WASHER

.406 x .875 x .105

1шт.

20285H

WASHER

.406 x .750 x .105

2шт.
