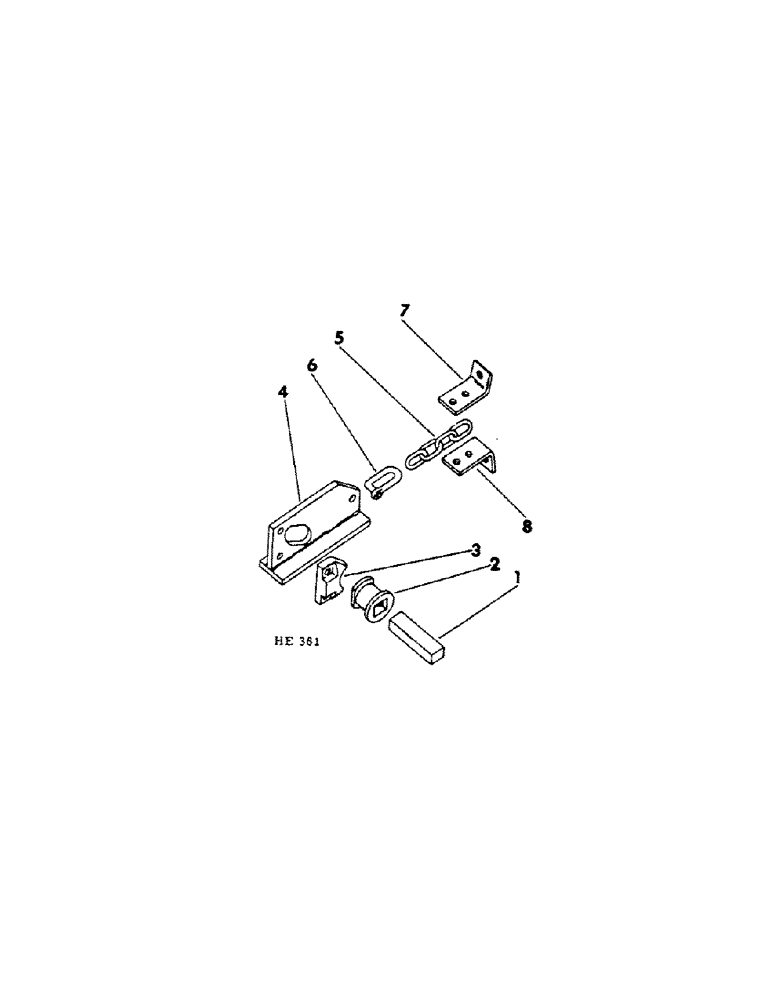

Запчасти Case IH 45 (F-08) - ROD WEEDER ROD AND MOUNTING

1

ROD, weeder, 14 foot, for service order 1-594700R1, and cut to 168 inches in length

1шт.

1

594700R1

ROD, weeder, 18 foot

1шт.

1

598625R1

ROD, weeder, 20 foot

1шт.

2

L3175

SPOOL

rod bearing

1шт.

3

L3174

BEARING

weeder rod

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

594743R11

BRACKET ASSY, weeder rod attaching

1шт.

5

598621R1

CHAIN, weeder rod attaching, 5 links, for use w/trail models and wing type models

1шт.

5

598622R1

CHAIN, weeder rod attaching, 13 links, for use on wing models only

1шт.

6

594748R1

LOCK, attaching chain

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

7

598623R1

ANGLE, chain attaching upper

1шт.

8

598624R1

ANGLE, chain attaching lower

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19052R1

BOLT

7/16-14 x 1-3/4 no. 3 plow

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21763R1

WASHER

.469 x .750 x .105

2шт.
