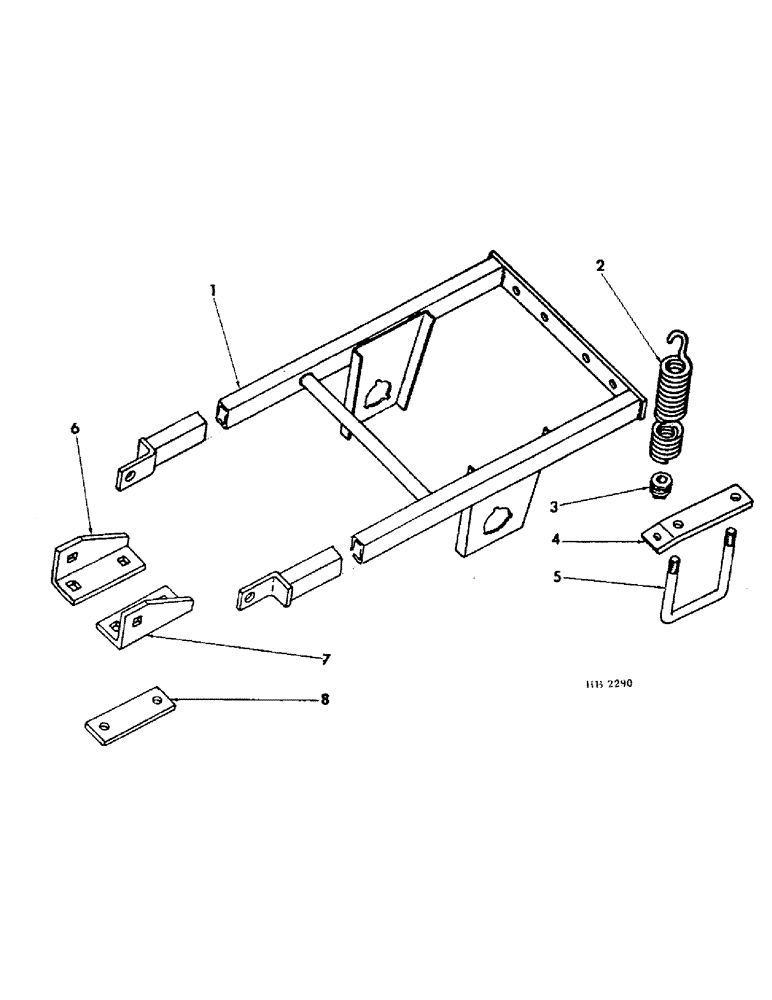

Запчасти Case IH 45 (F-03) - ROD WEEDER DRIVE WHEEL FRAME

1

598598R1

FRAME ASSY, drive wheel support

1шт.

2

612435R2

SPRING

front tension

2шт.

3

PO213

PLUG, front tension spring

2шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2-13 x 6 hex-hd

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex jam

2шт.

4

598601R1

SUPPORT, front tension spring

1шт.

5

598602R1

U-BOLT, tension spring support

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

598603R1

ANGLE, frame rear pivot support LH

1шт.

7

598604R1

ANGLE, frame rear pivot support RH

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

598605R1

BAR, pivot support

2шт.
