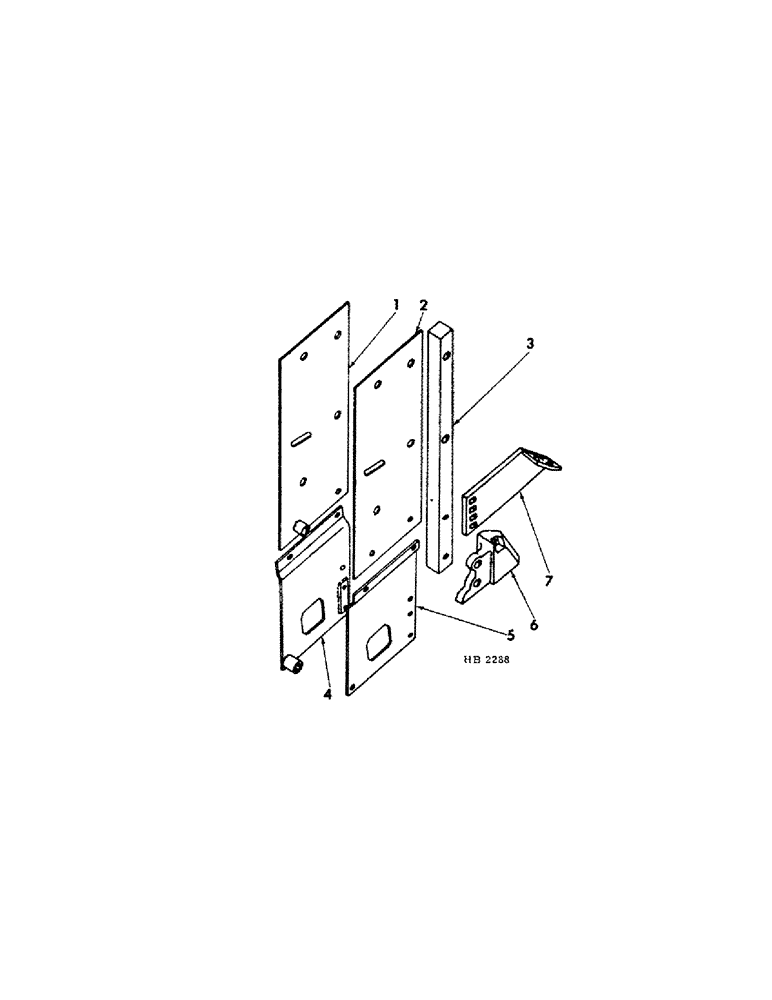

Запчасти Case IH 45 (F-02) - ROD WEEDER BOOT FRAME

1

598612R2

PLATE, boot upper LH

1шт.

2

598613R2

BAR, boot upper side RH

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

3

598614R1

BAR, boot

1шт.

4

812045C1

PLATE ASSY, boot lower side LH

1шт.

5

812046C1

PLATE ASSY, boot lower side RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-18 z 1-1/4 hex-hd

3шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 ext-t lock

3шт.

6

812052C1

NOSE, boot

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 external tooth lock

2шт.

7

598615R1

BRACE, boot connecting short, for use on trail models

1шт.

7

598618R1

BRACE, boot connecting long, for use on wing type models

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 carriage

1шт.

19052R1

BOLT

7/16-14 x 1-3/4 no. 3 plow

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.
