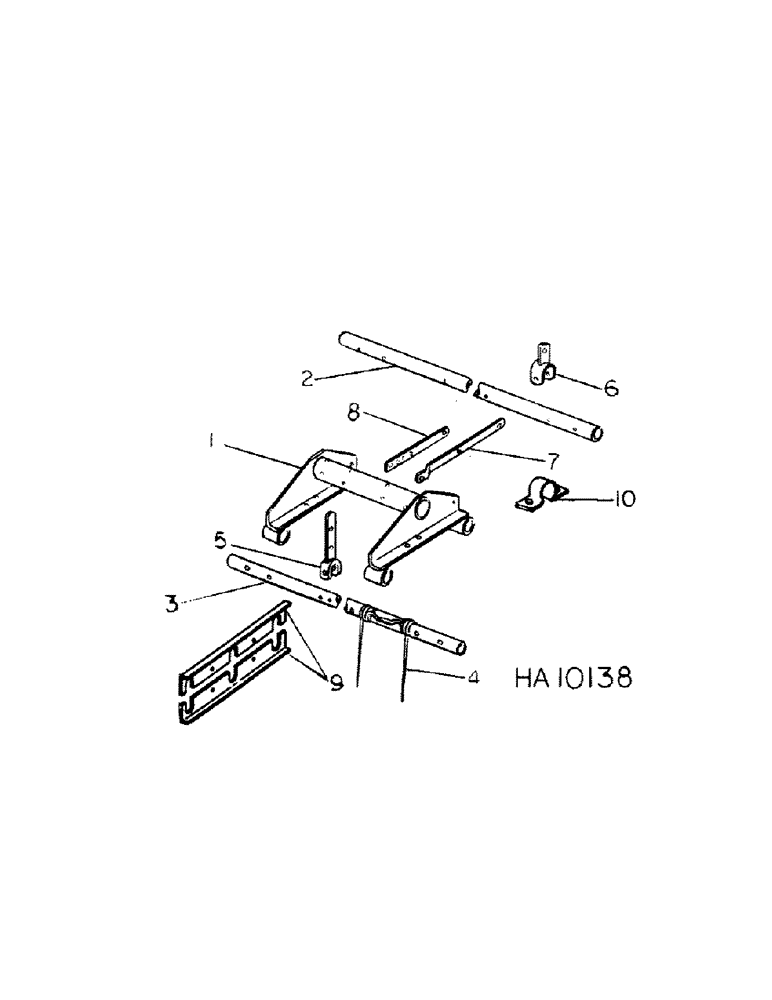

Запчасти Case IH 45 (E-05) - 3 FOOT, 6 INCH BAR MULCHER

1

485614R2

FRAME

3-1/2 foot mulcher

1шт.

2

485589R1

TUBE

3-1/2 foot 1st tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

3

485590R1

TUBE

3-1/2 foot 3rd tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

4

72901C1

TOOTH

spring

6шт.

485591R1

SPACER

BUSHING, tooth

2шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

3/8-16 x 2-3/4 hex-hd shoulder

10шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 znd hex-hd

2шт.

472144R1

NUT

3/8-16 hex, lock

12шт.

5

485592R1

ARM

rear handle

1шт.

NLS

NO LONGER SERVICED

7/16-14 x 2-3/4 znd hex-hd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex, lock

1шт.

6

(Not used this application)

1шт.

7

485593R1

SUPPORT

handle reach

1шт.

8

485594R1

BAR

adjusting reach

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 std head drilled

4шт.

607891R1

WASHER

.469 x 1.000 x .054

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

(Not used this application)

1шт.

10

(Not used this application)

1шт.

485595R1

SUPPORT

front post (not illustrated)

1шт.
